Seat Position and Lumbar (Coupe with AQ9 without A45)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

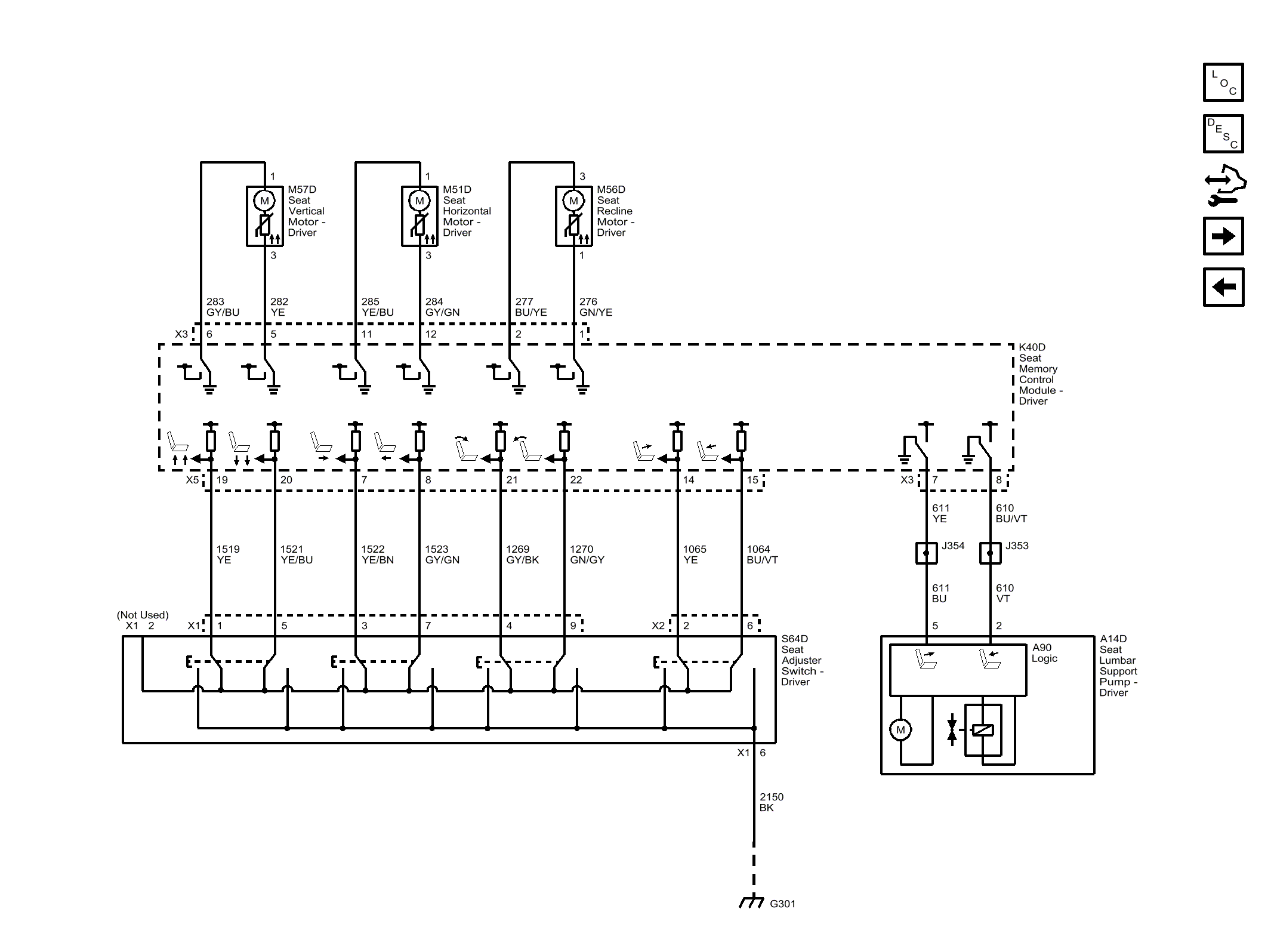

Fig 1: Seat Position and Lumbar (Coupe with AQ9 without A45)
GM4054997Courtesy of GENERAL MOTORS COMPANY
