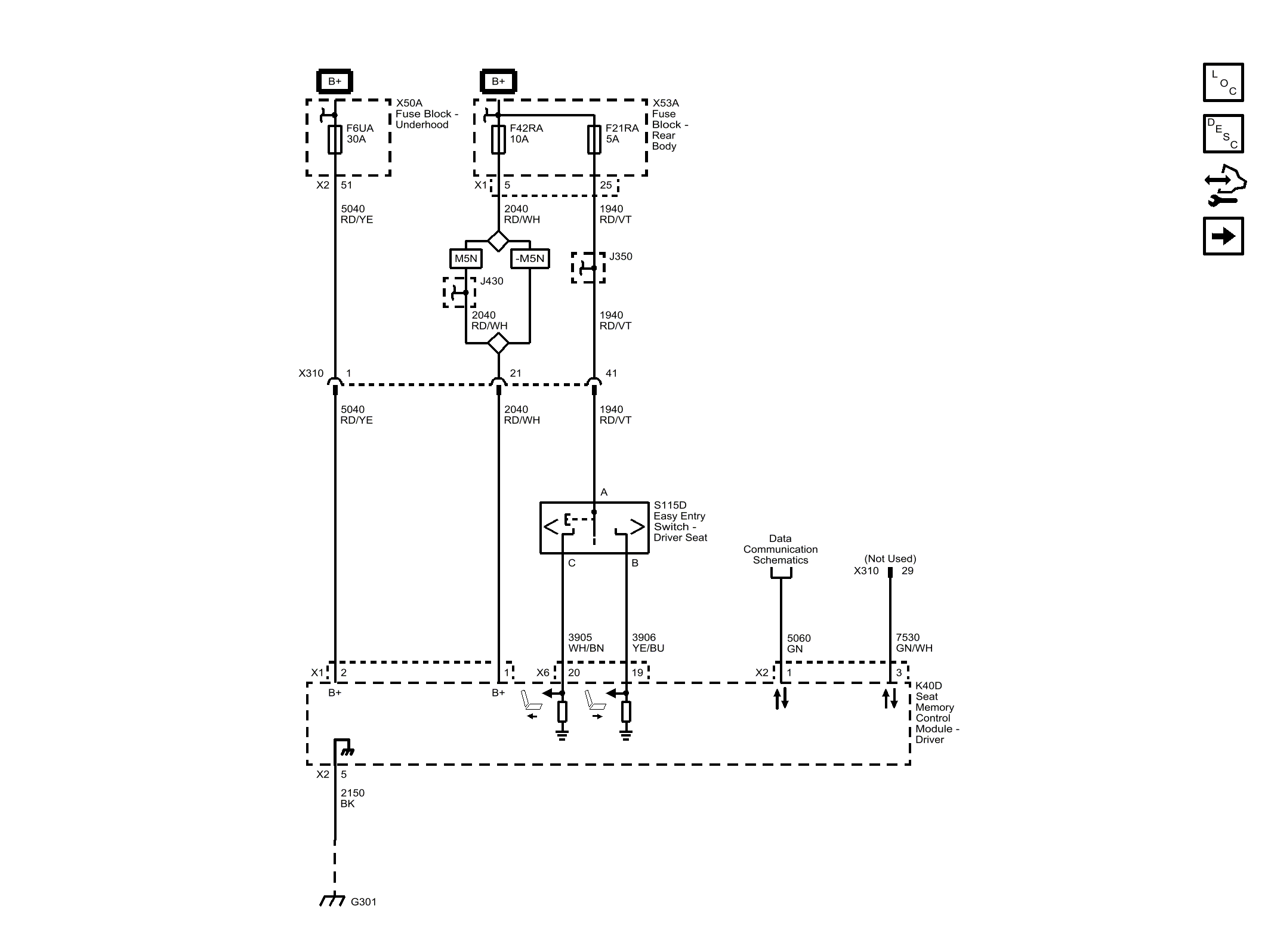

Power, Ground, Serial Data and Easy Entry (Coupe with AQ9 without A45)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
