Front Impact Sensing and Deployment

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

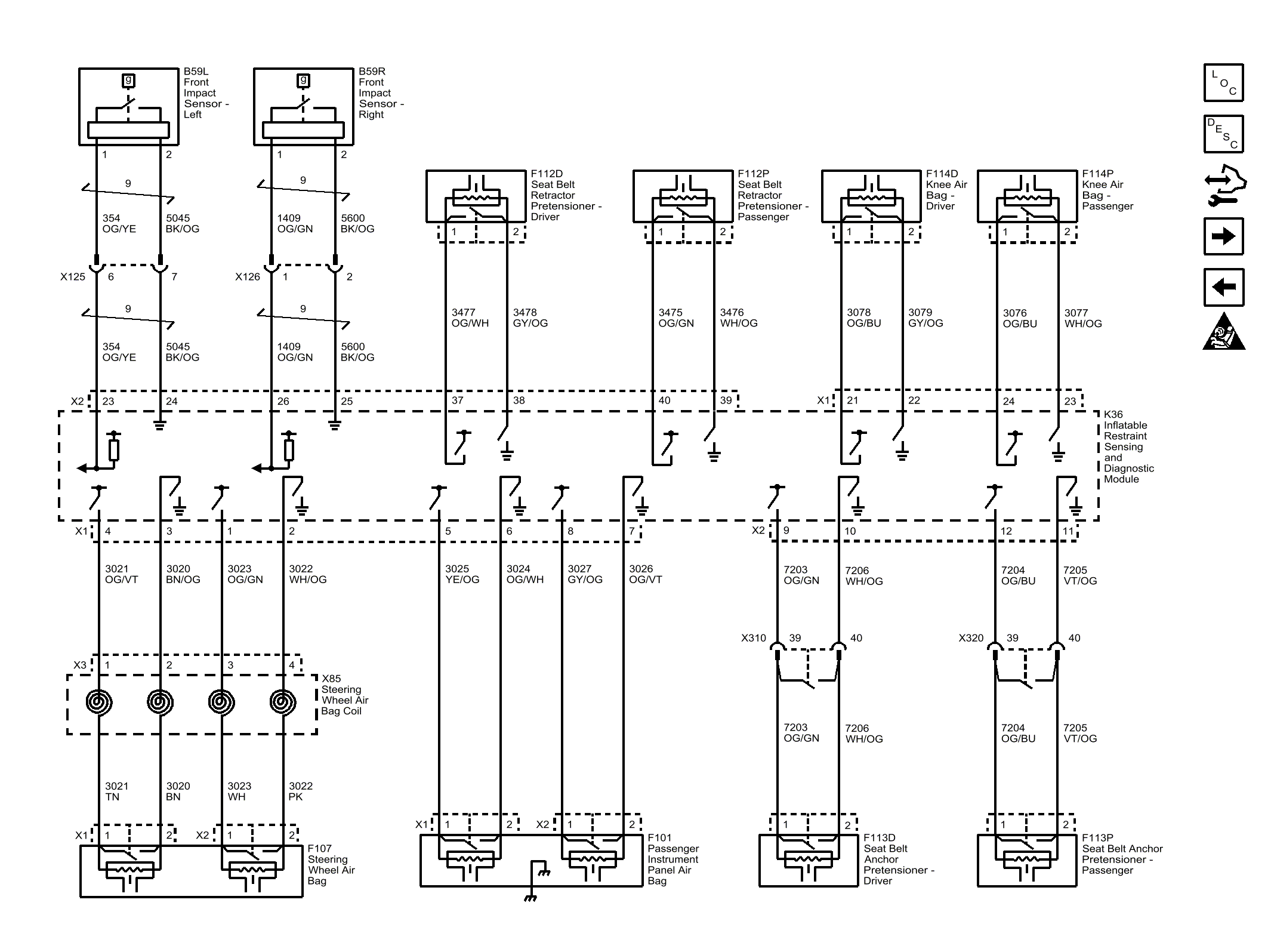

Fig 1: Front Impact Sensing and Deployment
GM4054983Courtesy of GENERAL MOTORS COMPANY
