Duct Air Temperature Sensor Replacement - Upper Right Side

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

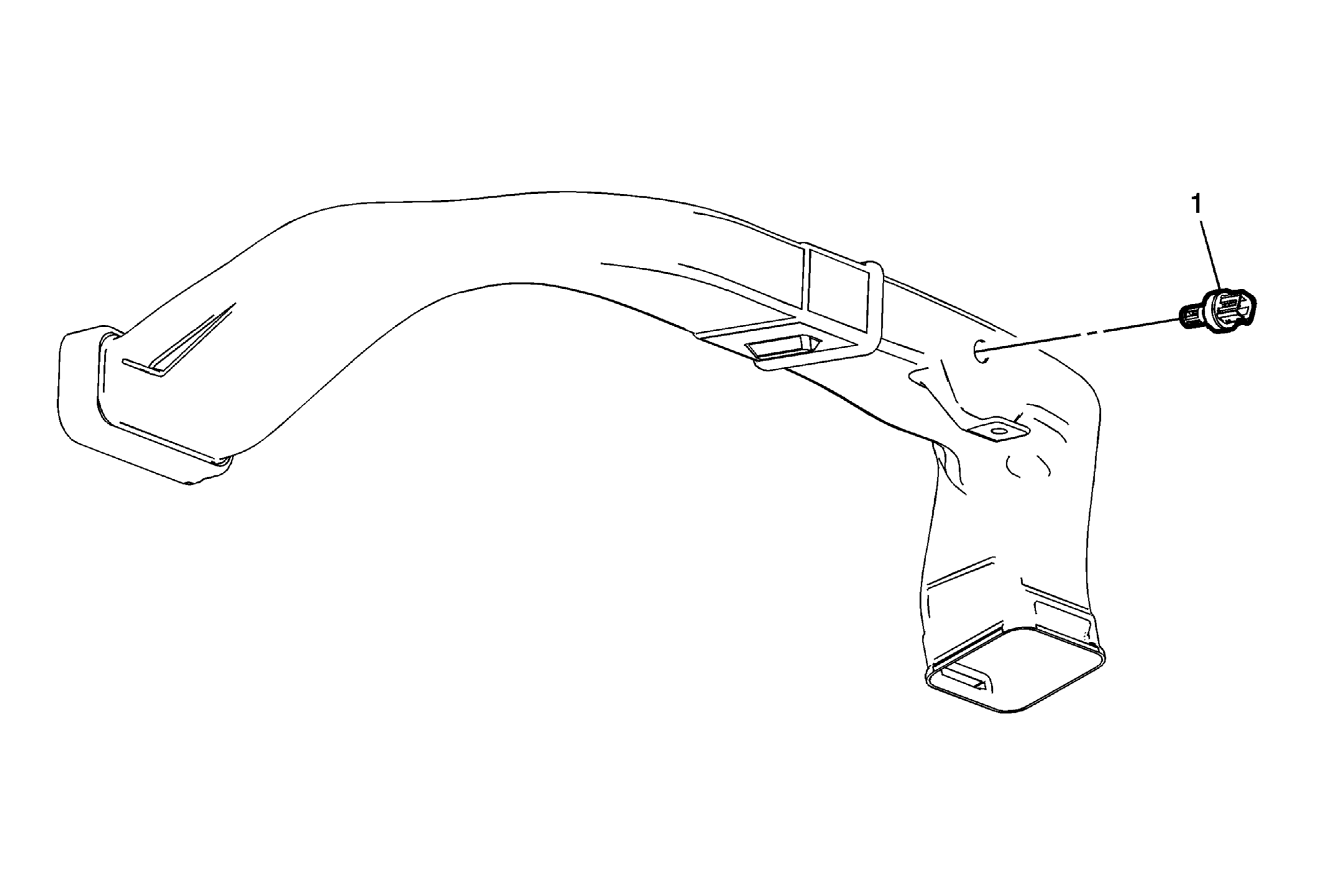

Fig 1: Duct Air Temperature Sensor - Upper Right Side

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the right side air distributor duct. Refer to Air Distributor Duct Replacement - Right Side .
1	Duct Air Temperature Sensor - Upper Right Side Procedures Disconnect the right upper duct air temperature sensor connector. To remove the right upper duct air temperature sensor, pull the right upper duct air temperature sensor out of the right air distributor duct.

Call out

Component Name

Preliminary Procedure
Remove the right side air distributor duct. Refer to Air Distributor Duct Replacement - Right Side .

Duct Air Temperature Sensor - Upper Right Side

Procedures

Disconnect the right upper duct air temperature sensor connector.
To remove the right upper duct air temperature sensor, pull the right upper duct air temperature sensor out of the right air distributor duct.
