Duct Air Temperature Sensor Replacement - Upper Left Side

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

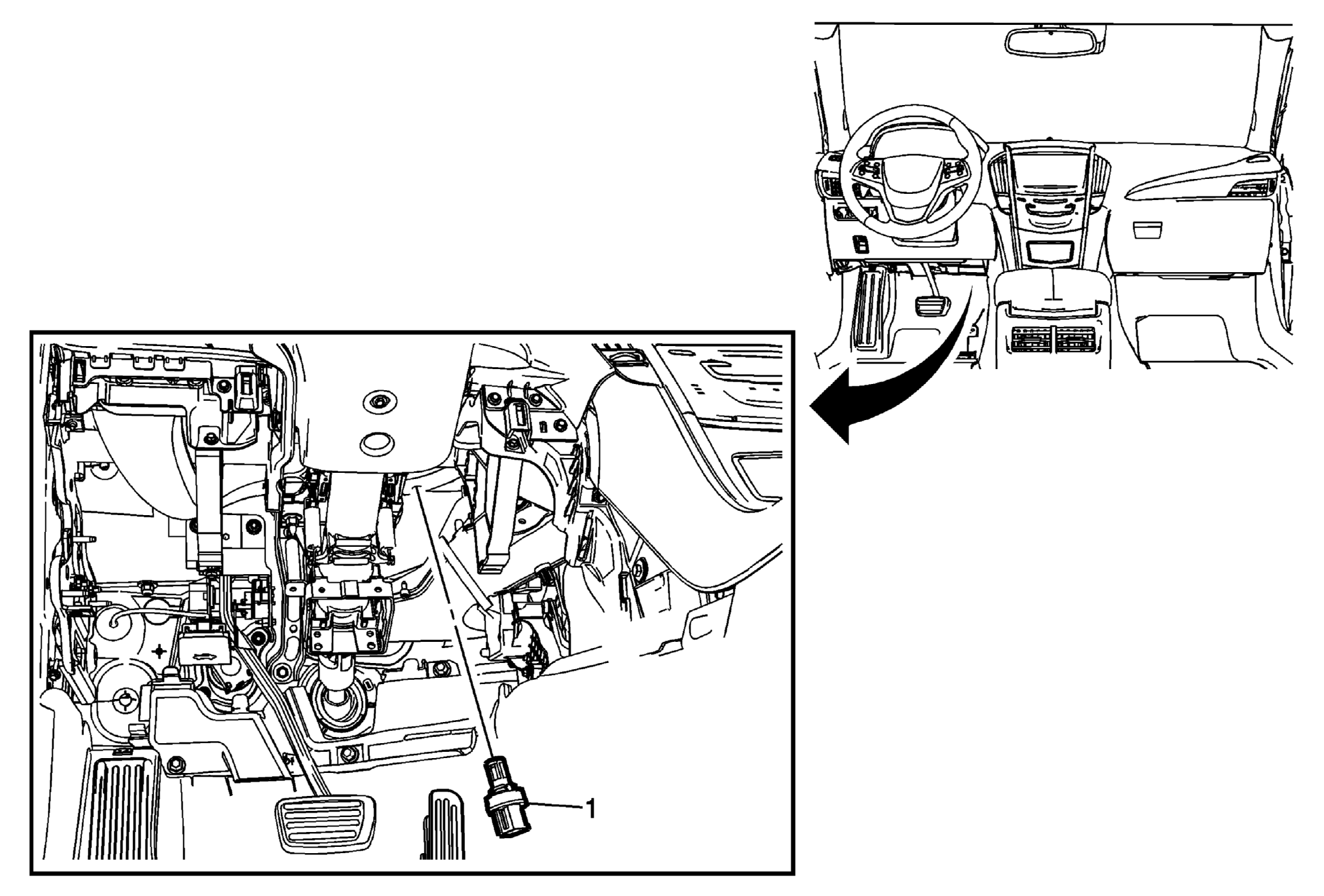

Fig 1: Duct Air Temperature Sensor - Upper Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel driver knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1	Duct Air Temperature Sensor - Upper Left Side Procedures Disconnect the left upper duct air temperature sensor connector. To remove the left upper duct air temperature sensor, pull the left upper duct air temperature sensor out of the left side air distributor duct.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel driver knee bolster. Refer to Instrument Panel Knee Bolster Replacement .

Duct Air Temperature Sensor - Upper Left Side

Procedures

Disconnect the left upper duct air temperature sensor connector.
To remove the left upper duct air temperature sensor, pull the left upper duct air temperature sensor out of the left side air distributor duct.
