Speakers (Sedan with IO5 or IO6 and UQA)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

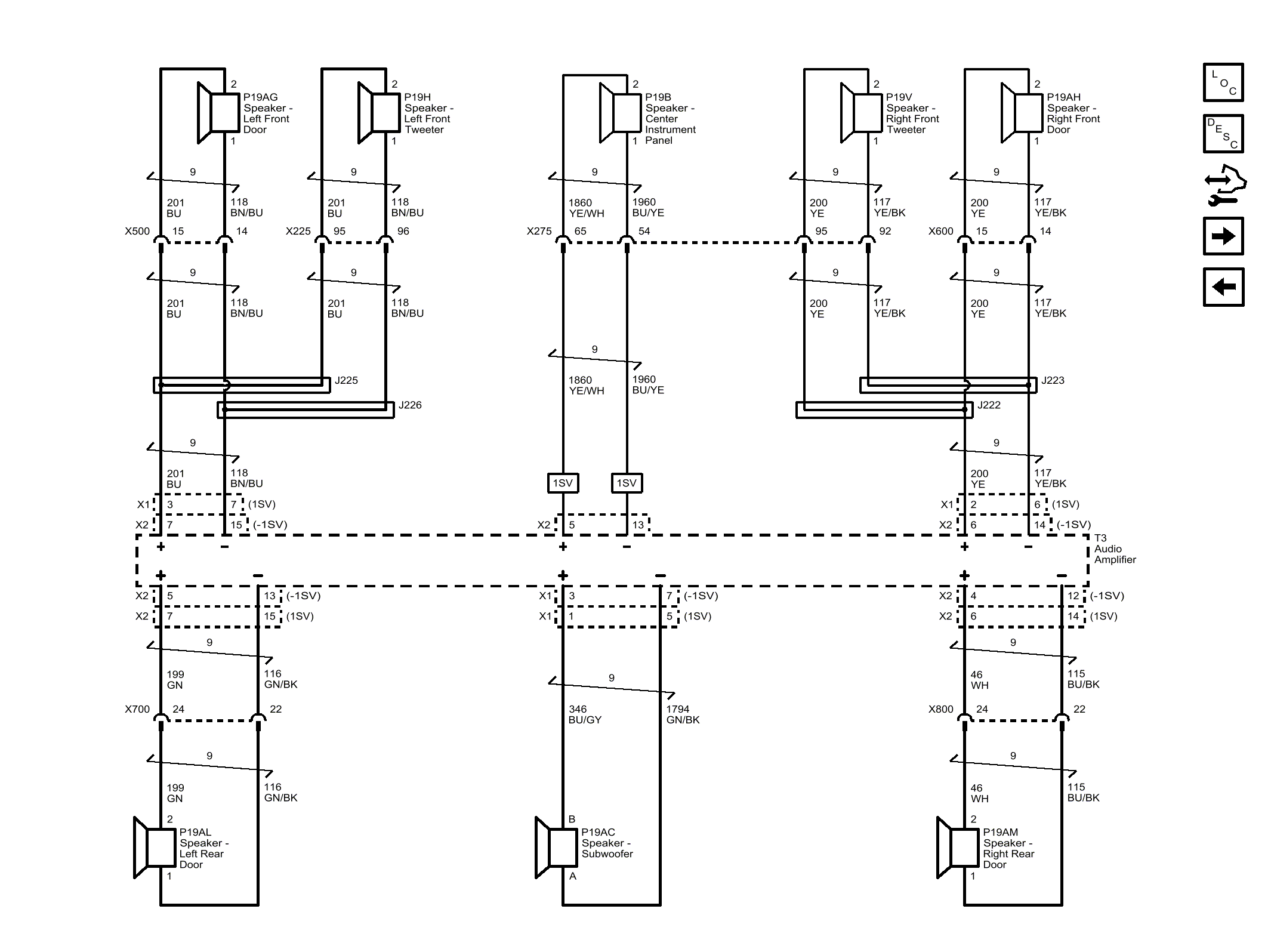

Fig 1: Speakers (Sedan with IO5 or IO6 and UQA)
GM4050625Courtesy of GENERAL MOTORS COMPANY
