Speakers (Coupe with IO5 or IO6 and UQS)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

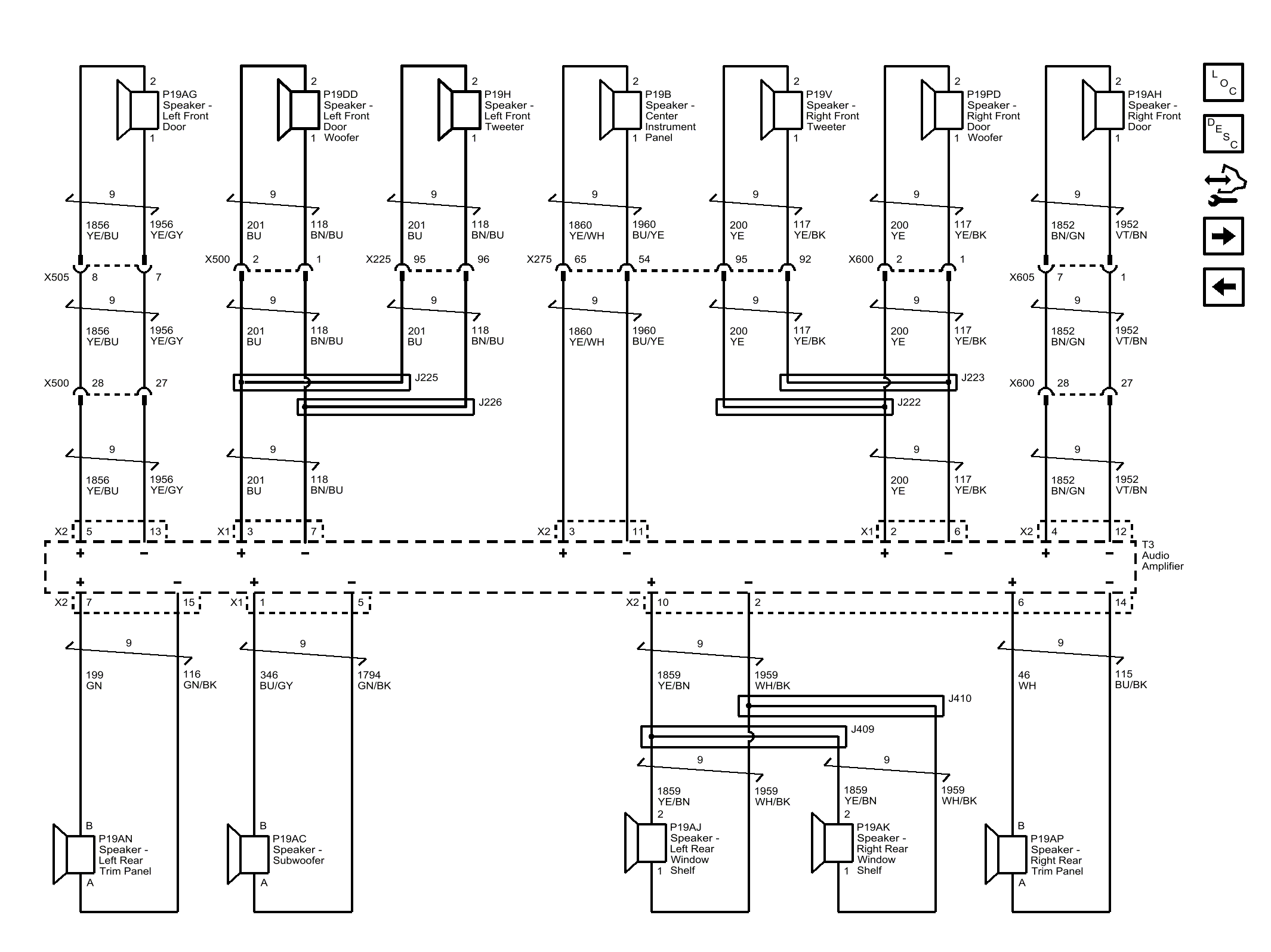

Fig 1: Speakers (Coupe with IO5 or IO6 and UQS)
GM4050623Courtesy of GENERAL MOTORS COMPANY
