Engine Oil Level and Engine Mount Actuator (LF4)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

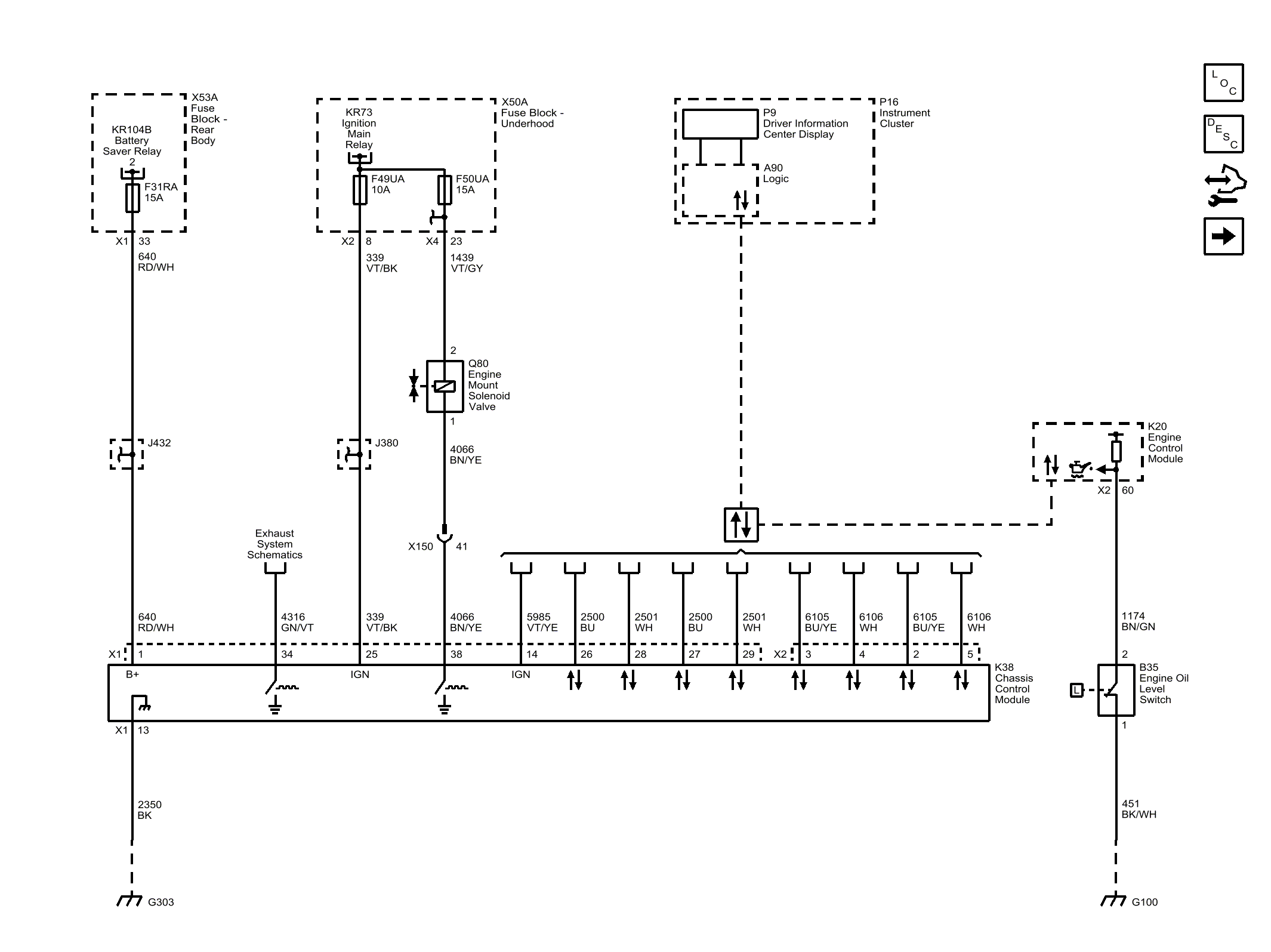

Fig 1: Engine Oil Level and Engine Mount Actuator (LF4)
GM4050759Courtesy of GENERAL MOTORS COMPANY
