Section 115 (Shift Lock Control System)
>>
Schematic Wiring Diagrams
>>
Shift Lock Control Wiring Schematics
>>
Shift Lock Control (M5T, M5N, M5U)
Shift Lock Control (M5T, M5N, M5U)
WARNING:
This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

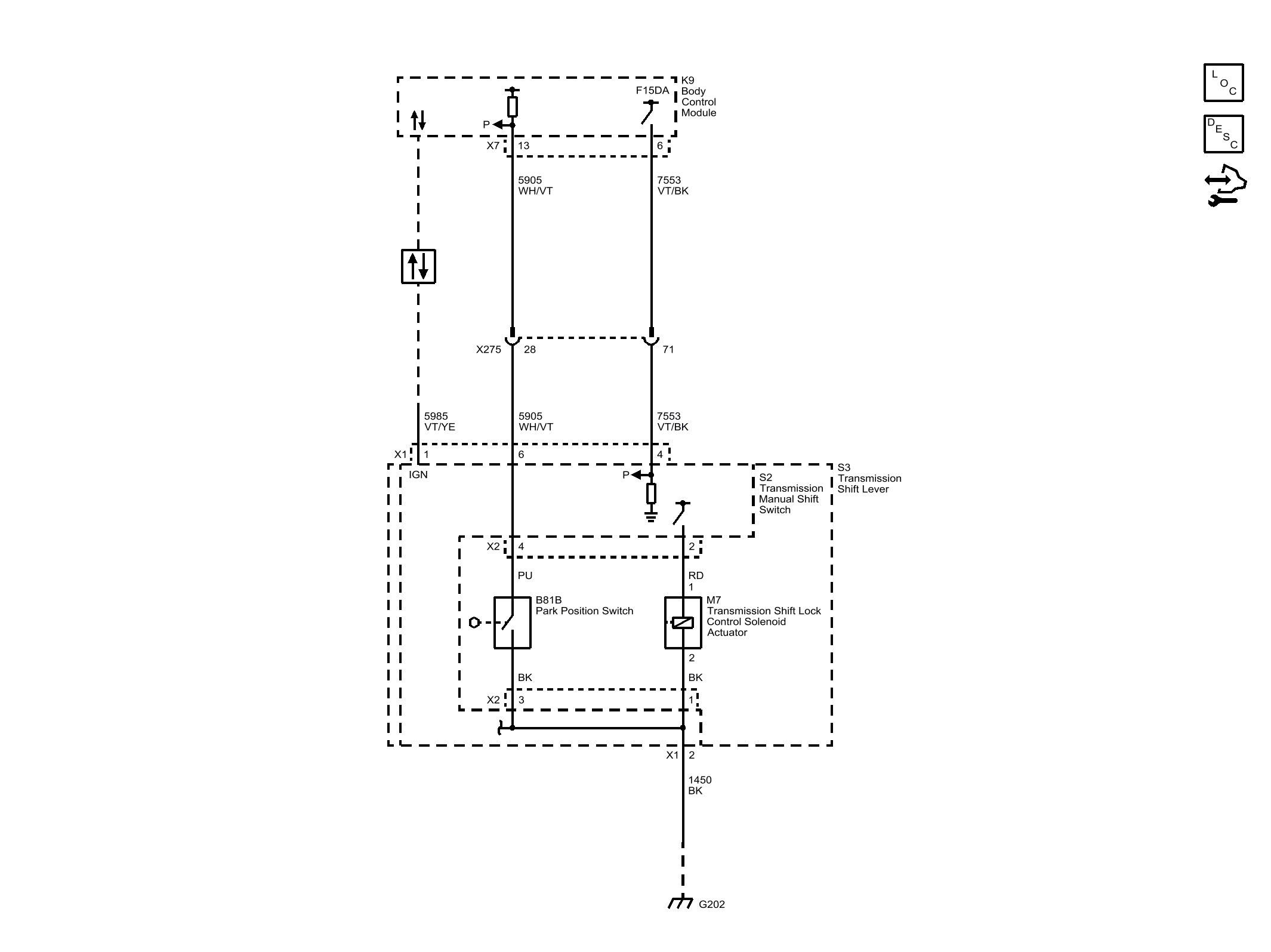

Fig 1: Shift Lock Control (M5T, M5N, M5U)
Courtesy of GENERAL MOTORS COMPANY
