Trailer Wiring (V2S)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

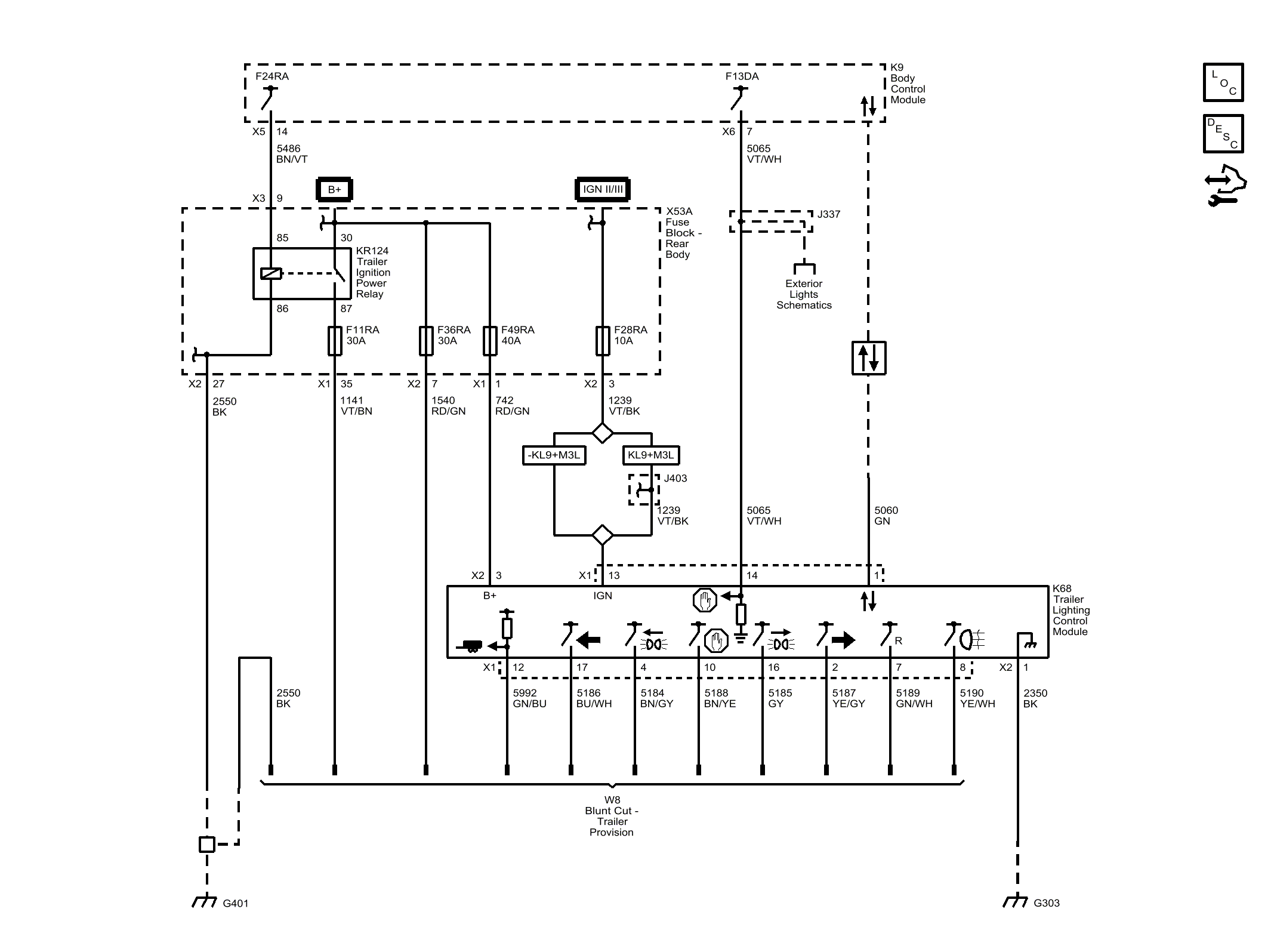

Fig 1: Trailer Wiring (V2S)
GM4054943Courtesy of GENERAL MOTORS COMPANY
