Exhaust Manifold Replacement (LCV)

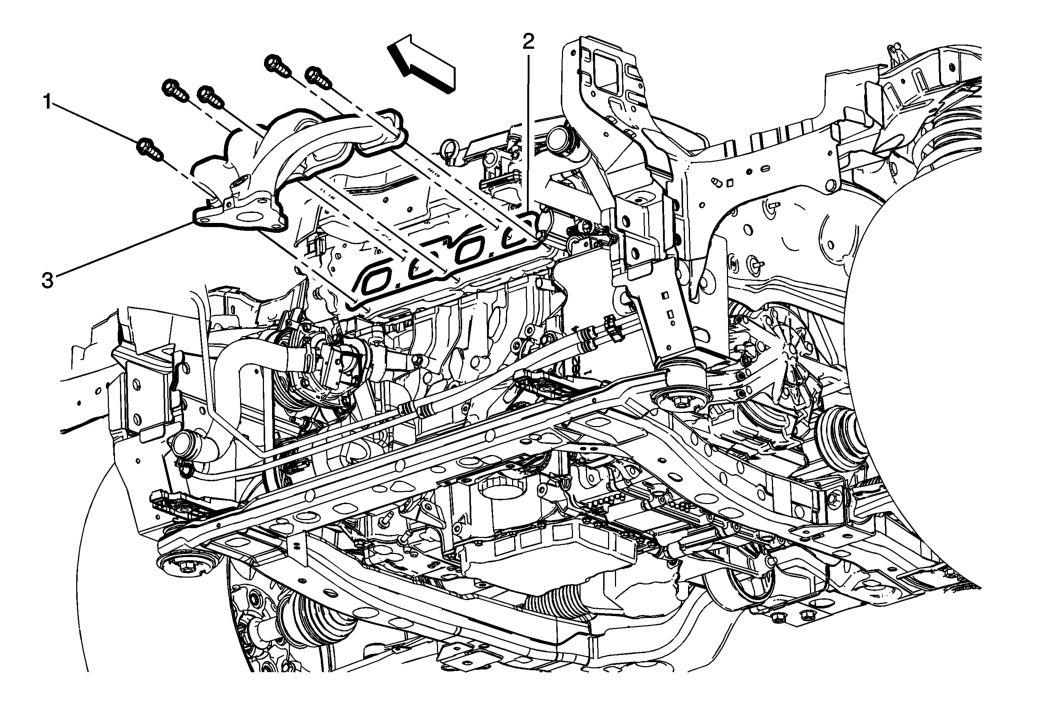

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedures Warm Up Three-Way Catalytic Converter Replacement (LCV) Heated Oxygen Sensor Replacement - Sensor 1
1	Exhaust Manifold Fasteners (Qty: 5) CAUTION: Refer to Fastener Caution . NOTE: Perform two torque sequence passes at the same torque specification. The exhaust manifold gasket will relax between passes. Tighten First Pass 20 N.m (15 lb ft) Final Pass 20 N.m (15 lb ft)
2	Exhaust Manifold Gasket NOTE: Replace with a NEW exhaust manifold gasket.
3	Exhaust Manifold Procedure Remove and discard the exhaust manifold gasket. Clean any exhaust manifold gasket debris from the cylinder head and exhaust manifold. Install NEW exhaust manifold gasket. Tighten the exhaust manifold fasteners working from the center out. Perform two torque sequence passes at the same torque specification.
