X410 Body Harness To Left Tail Lamp Assembly Harness
|
|
|

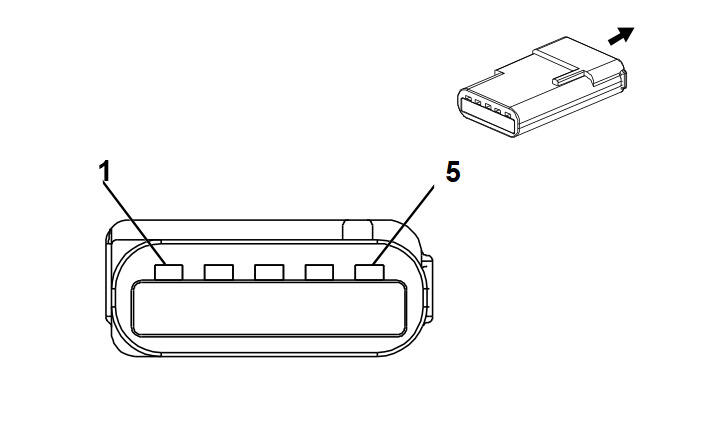

Connector Part Information
- Harness Type: Body
- OEM Connector: 13582041
- Service Connector: 19352903
- Description: 5-Way F (GY)
|
Connector Part Information
- Harness Type: Left Tail Lamp Assembly
- OEM Connector: Not Available
- Service Connector: Service by Harness
- Description: 5-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1350 |
I |
- |
Ground |
1 |
0.5 |
BK |
1350 |
II |
- |
| 2 |
0.5 |
YE/BU |
18 |
I |
- |
Left Rear Stop/Turn Lamp Control |
2 |
0.5 |
YE/BU |
18 |
II |
- |
| 3 |
0.5 |
VT/GY |
709 |
I |
- |
Left Park Lamp Control |
3 |
0.5 |
VT/GY |
709 |
II |
- |
| 4 - 5 |
- |
- |
- |
- |
- |
Not Occupied |
4 - 5 |
- |
- |
- |
- |
- |
