Luggage Carrier Side Rail Replacement

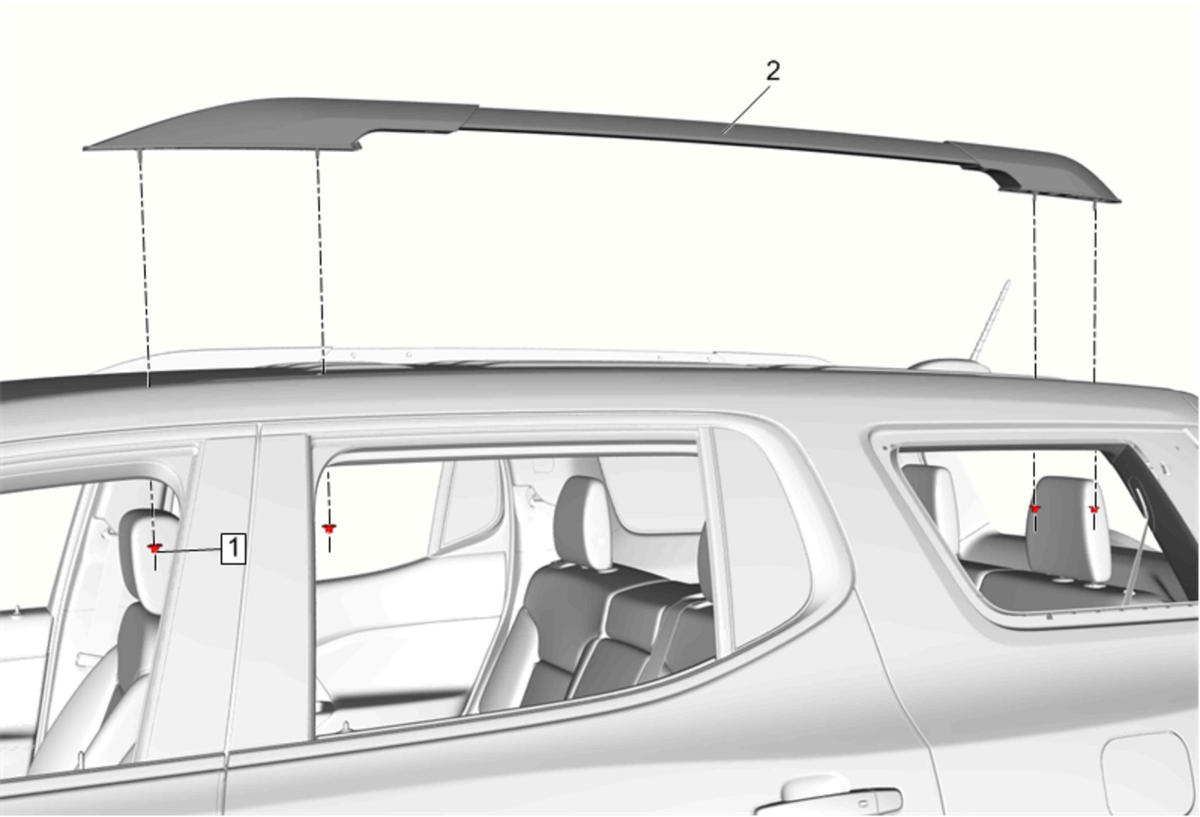

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only do those steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)
1	Luggage Carrier Side Rail Nut (Qty: 4) CAUTION: Component Fastener Tightening Caution Tighten 9 N.m (80 lb in)
2	Luggage Carrier Side Rail Procedure Transfer components as necessary. Water test the vehicle for leaks on the side of the vehicle that the side rail was replaced, install the headliner.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only do those steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

Luggage Carrier Side Rail Nut (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Luggage Carrier Side Rail

Procedure

Transfer components as necessary.
Water test the vehicle for leaks on the side of the vehicle that the side rail was replaced, install the headliner.
