Instrument Cluster Replacement (Terrain)

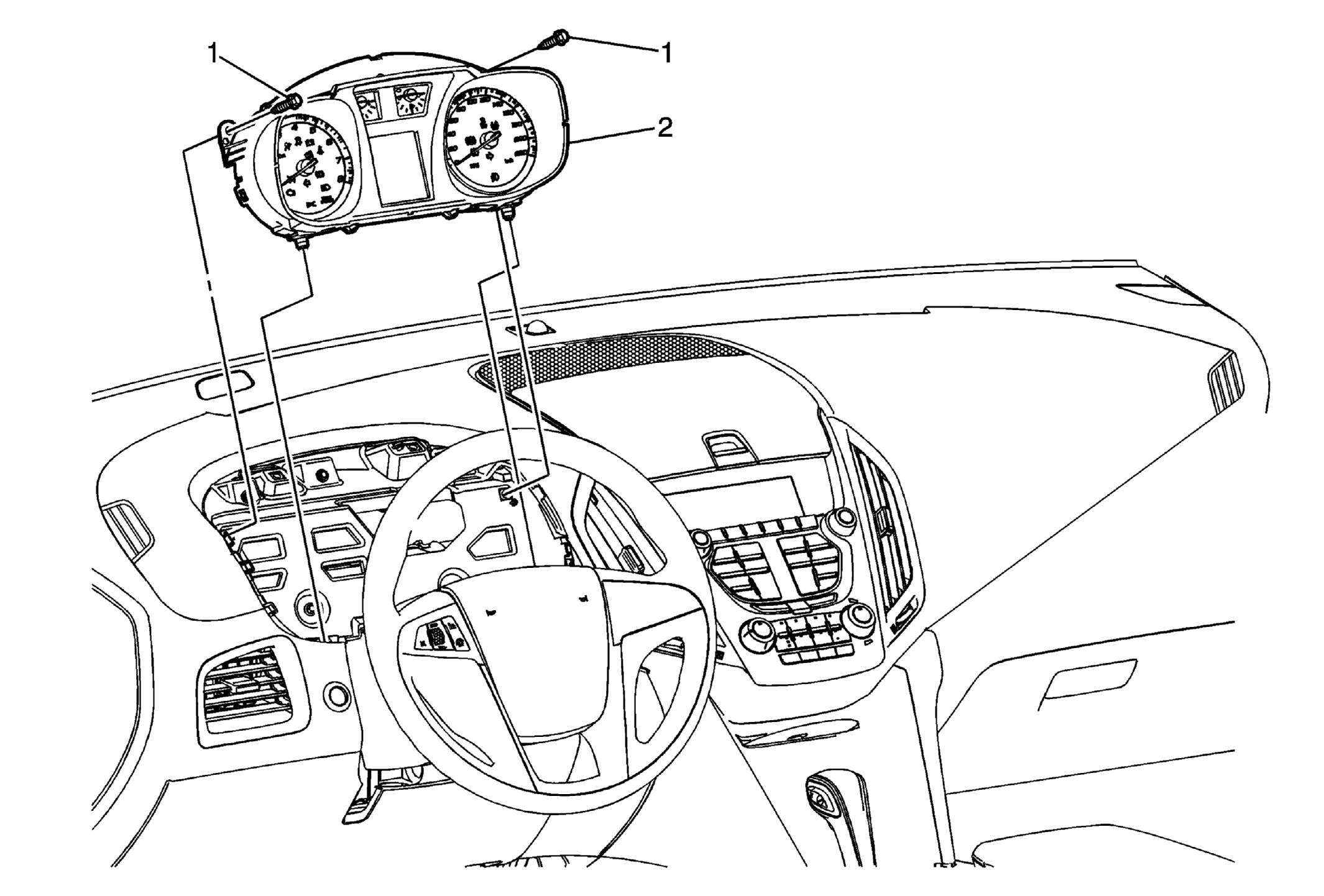

Fig 1: Instrument Cluster (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement (Terrain) .
1	Instrument Panel Cluster Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement (Terrain) .

Instrument Panel Cluster Fastener (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Cluster

Procedure
