Instrument Panel Center Compartment Replacement (Terrain)

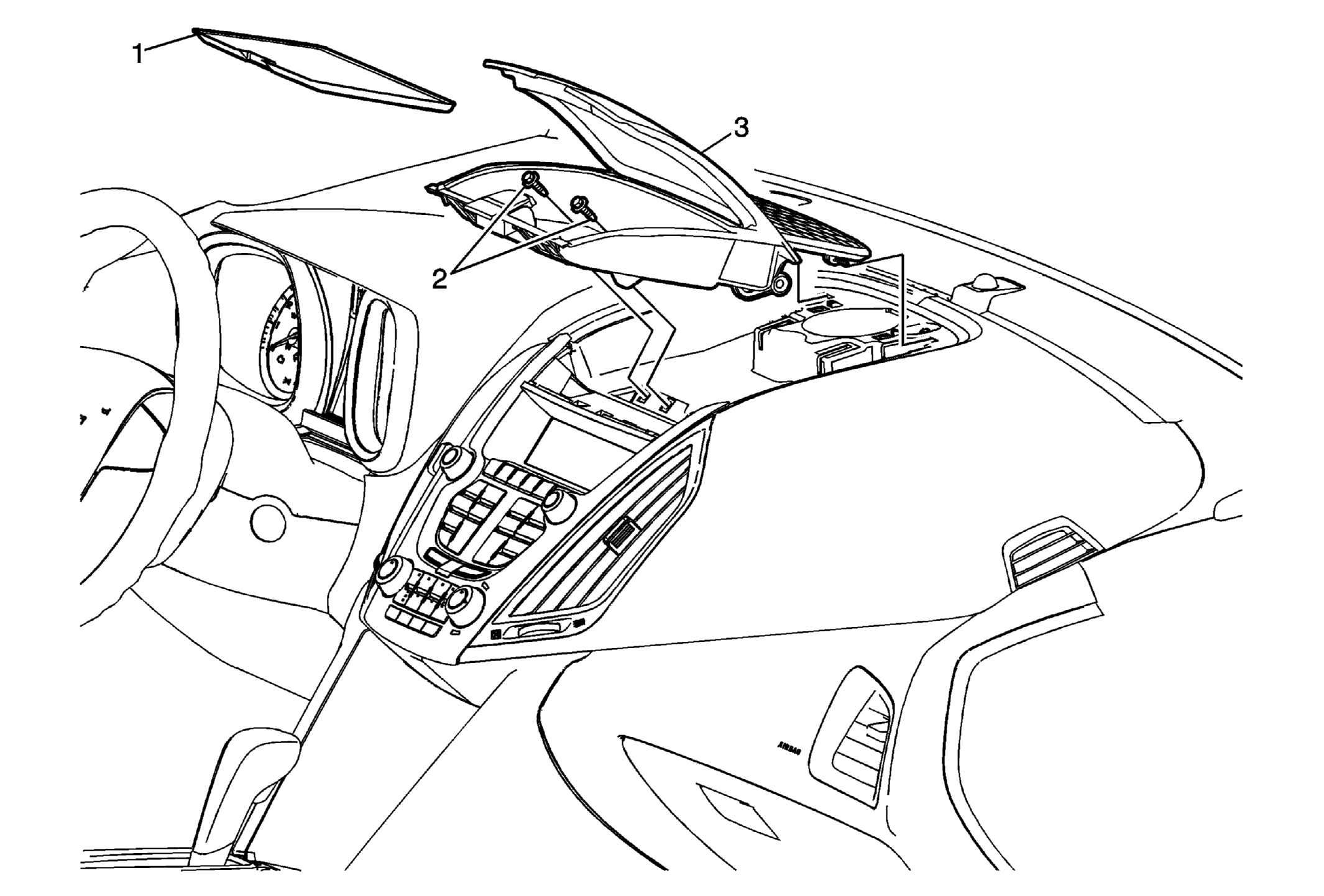

Fig 1: Instrument Panel Center Compartment (Terrain)
GM2260969Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Center Compartment Liner
2 Instrument Panel Center Compartment Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Instrument Panel Center Compartment Assembly
