Front Bumper Fascia Opening Cover Replacement (Equinox)
Front Bumper Fascia Opening Cover Replacement (Equinox)

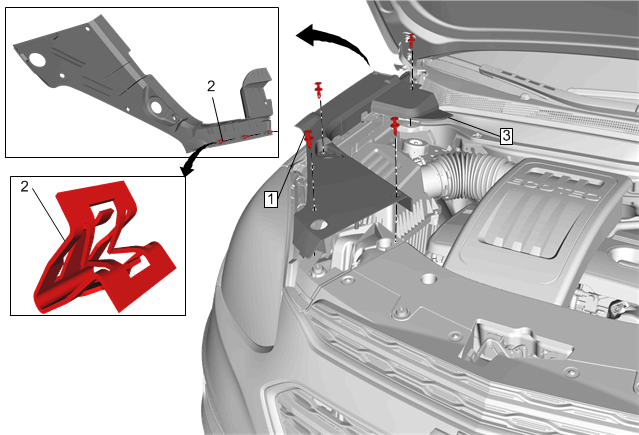

Fig 1: Front Bumper Fascia Opening Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Compartment Front Sight Shield Retainer (Qty: 4)
2
Front Compartment Front Sight Shield Retainer Clip (Qty: 3)
Procedure
Using a suitable trim tool, disengage the 3 hidden retainer clips.
3
Front Compartment Front Sight Shield
