Power, Ground, Serial Data, and Indicators

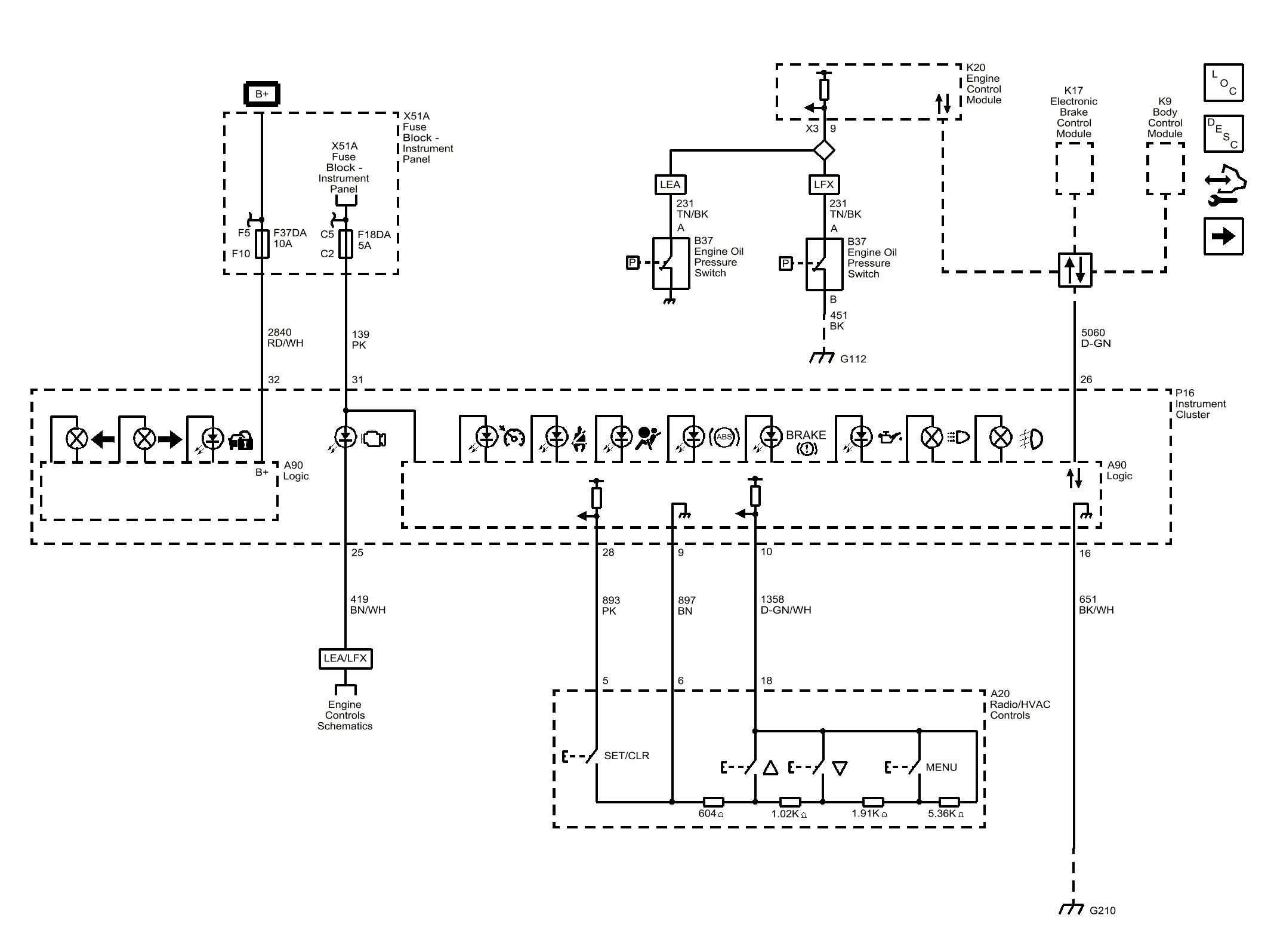

Fig 1: Power, Ground, Serial Data, and Indicators

GM4403816

Courtesy of GENERAL MOTORS COMPANY
