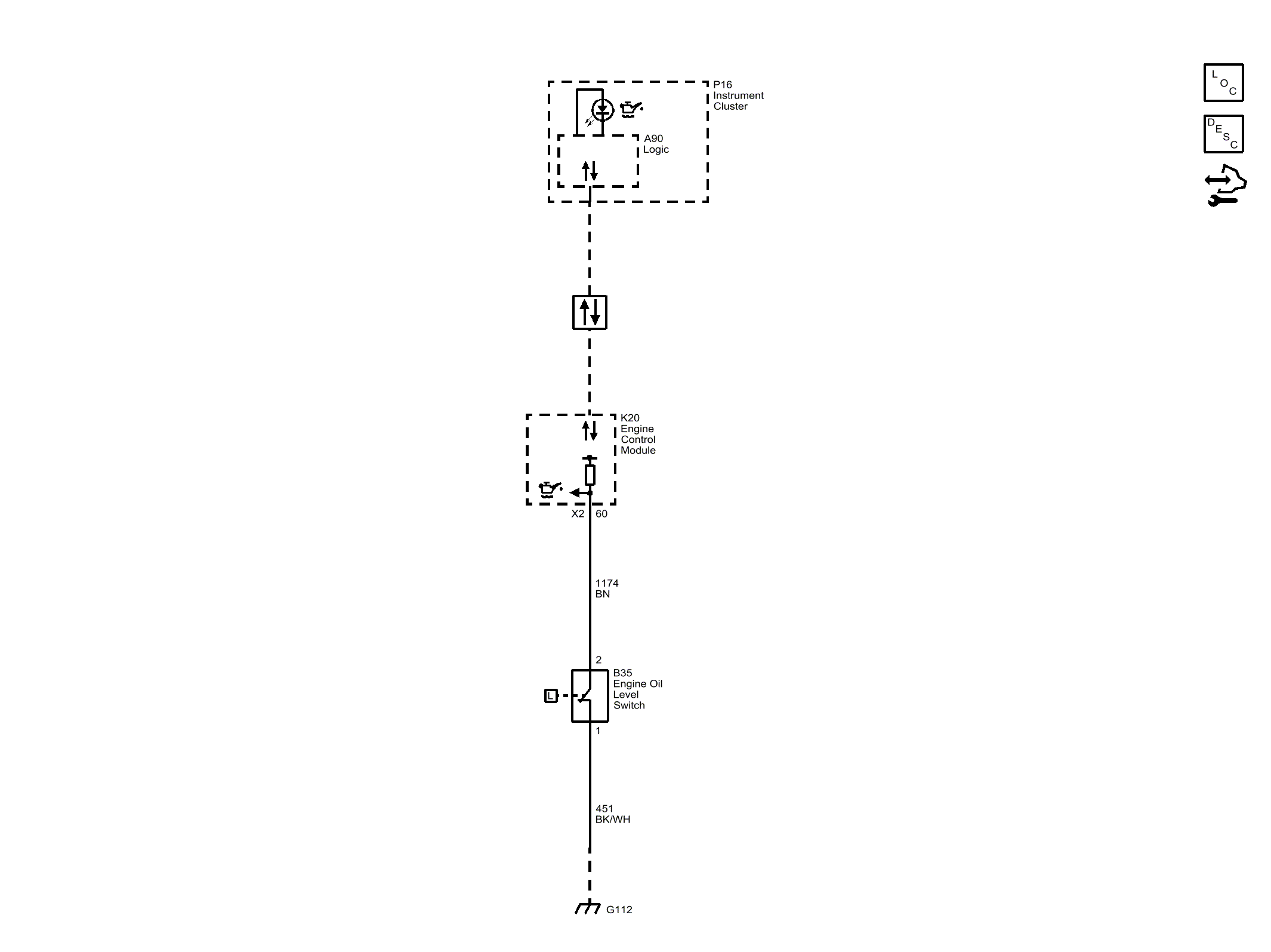

Home >> GMC >> 2017 >> Terrain SL, Gas >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Oil Level Sensor
