Ambient Air Temperature Sensor Replacement

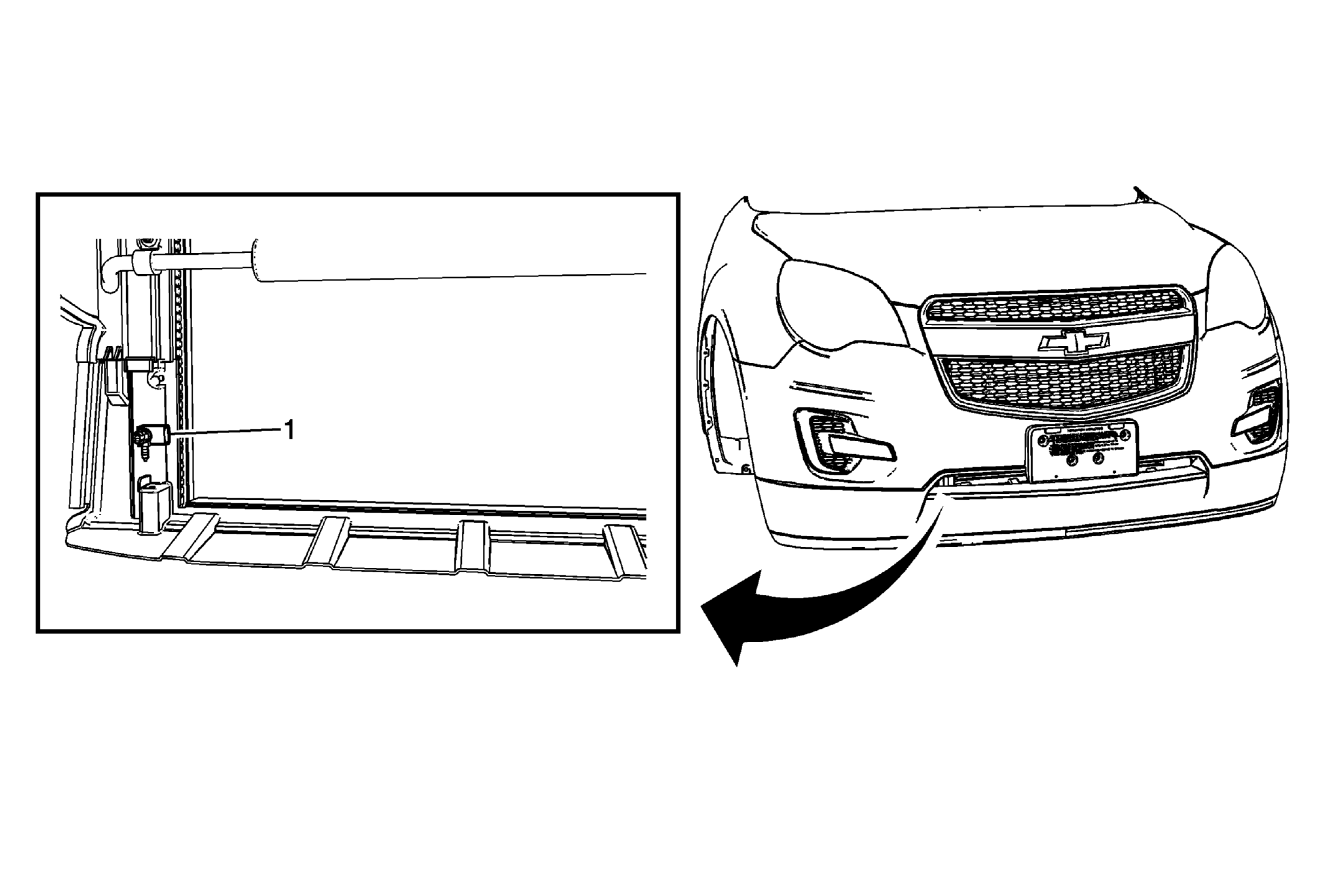

Fig 1: Ambient Air Temperature Sensor
GM2244385Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove front bumper fascia. Refer to Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain) .
1 Ambient Air Temperature Sensor

Procedure

  1. Unsnap the ambient air temperature sensor.
  2. Disconnect the electrical connector.
