Shock Absorber, Shock Absorber Component, or Spring Replacement (With ZR2)

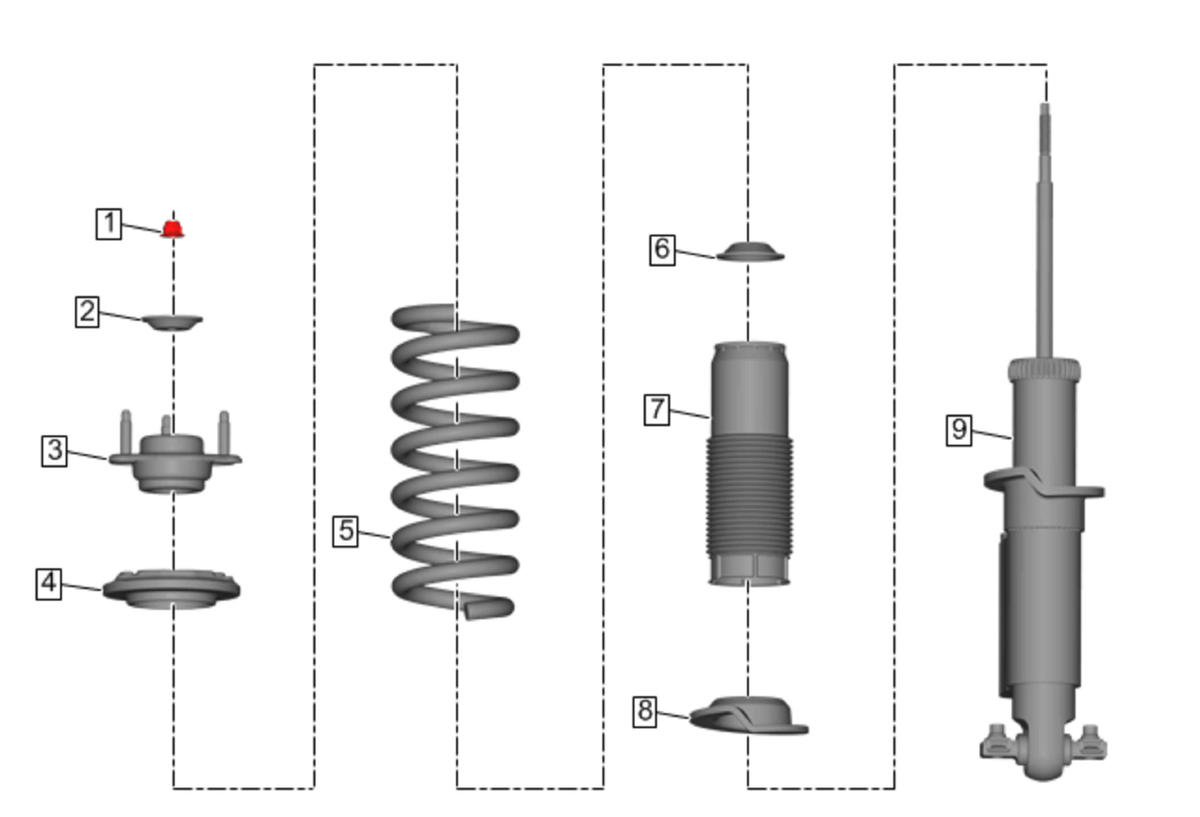

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Refer to Shock Absorber and Spring Removal and Installation (With ZR2) To prevent personal injury and/or component damage, use the proper tools to support and compress the coil spring prior to removal of the strut shaft nut when removing the coil spring. The coil spring is under extreme pressure and can become a projectile should the spring separate from the strut before all of the tension is relieved. |
|
| 1 | Front Shock Absorber Nut
CAUTION:
Refer to Fastener Caution . Procedure Use the CH-48845 compressor to compress the front shock absorber and spring assembly. Tighten 38 N.m (28 lb ft) Special Tools CH-48845 Strut Spring Compressor Equivalent regional tools: Special Tools |
| 2 | Front Shock Absorber Upper Washer |
| 3 | Front Shock Absorber Upper Mount |
| 4 | Front Shock Absorber Spring Upper Insulator |
| 5 | Front Shock Absorber Spring |
| 6 | Front Shock Absorber Lower Washer |
| 7 | Front Shock Absorber Dust Shield |
| 8 | Front Shock Absorber Spring Lower Insulator |
| 9 | Front Shock Absorber |
