Engine Oil Pressure Switch Replacement
WARNING: This page is about a different variant/trim than selected.

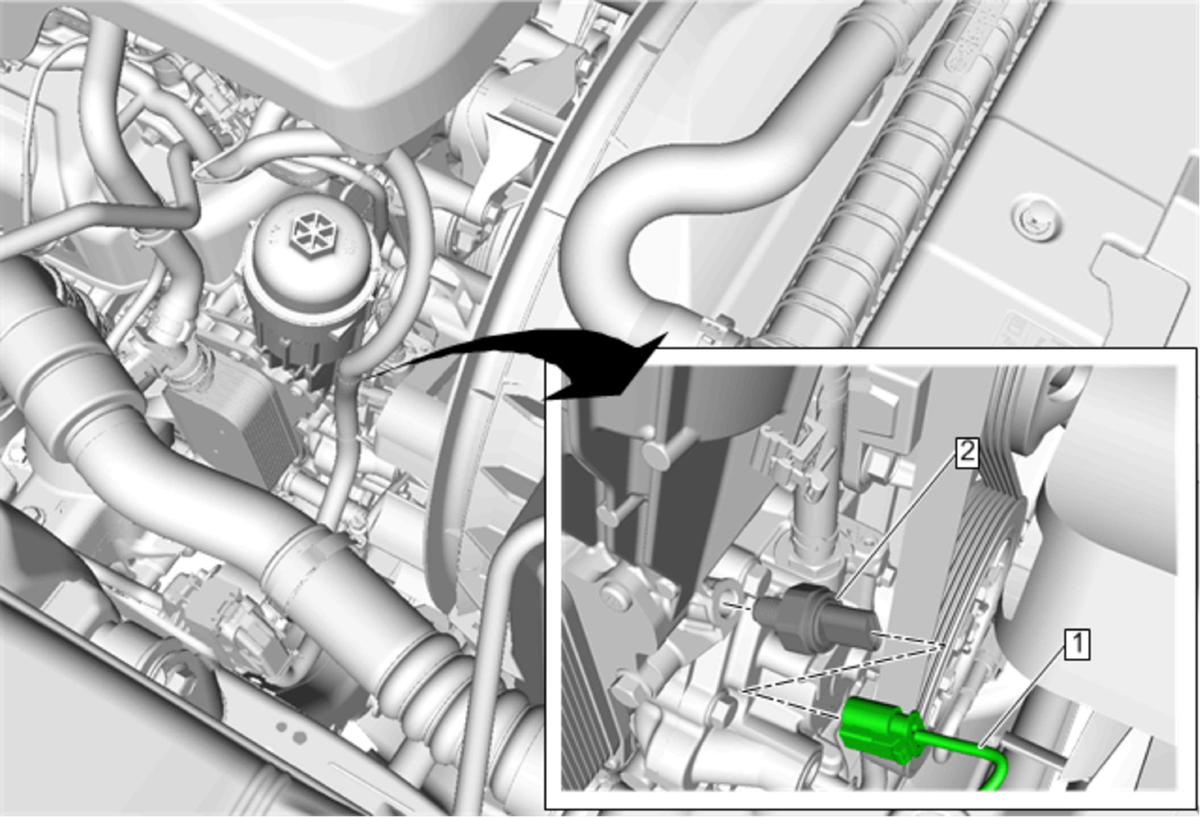

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement |
|
| 1 | Electrical Connector |
| 2 | Engine Oil Pressure Switch
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 35 N.m (26 lb ft) |
