Engine Oil Pressure Sensor and/or Switch Replacement

WARNING: This page is about a different variant/trim than selected.

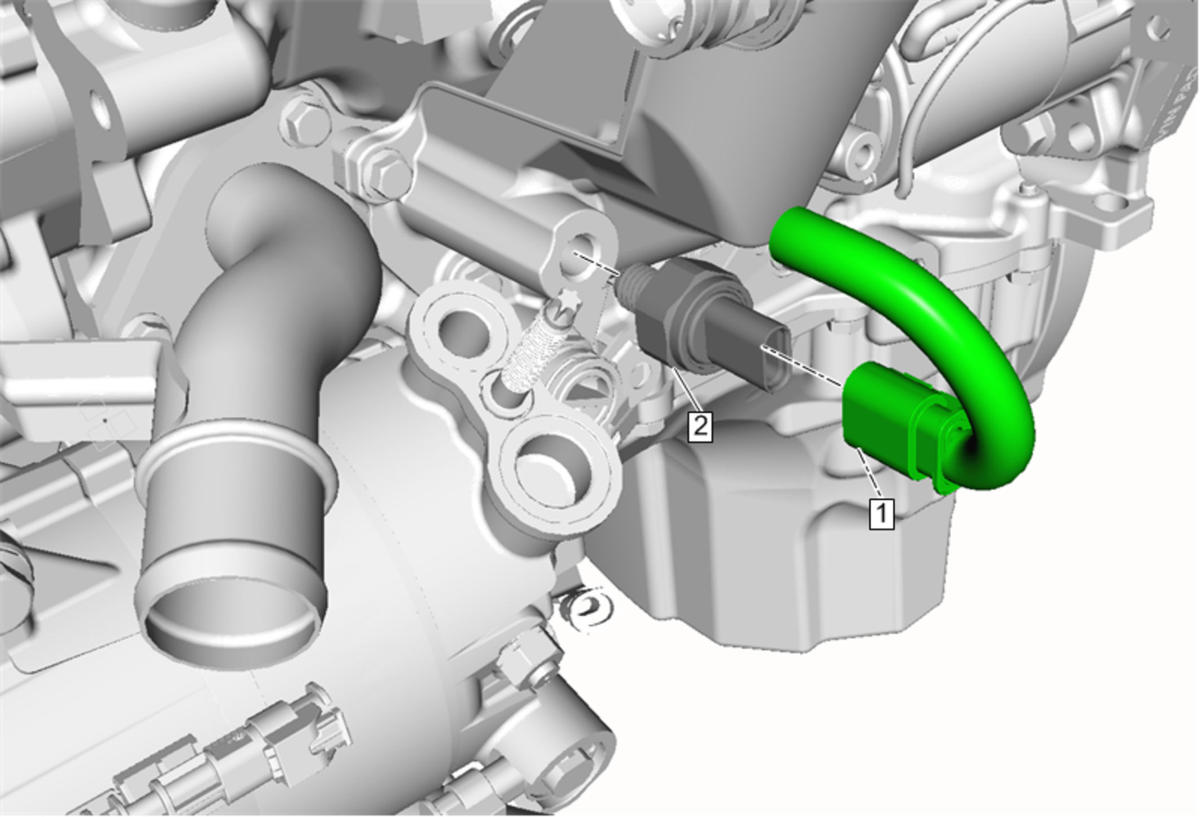

Fig 1: Oil Pressure Sensor And Electrical Connector
GM4573908Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Pressure Sensor Electrical Connector
2 Engine Oil Pressure Sensor and/or Switch
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
20 N.m (15 lb ft)
