Ambient Air Temperature Gauge Sensor Replacement (GMC)
Ambient Air Temperature Gauge Sensor Replacement (GMC)

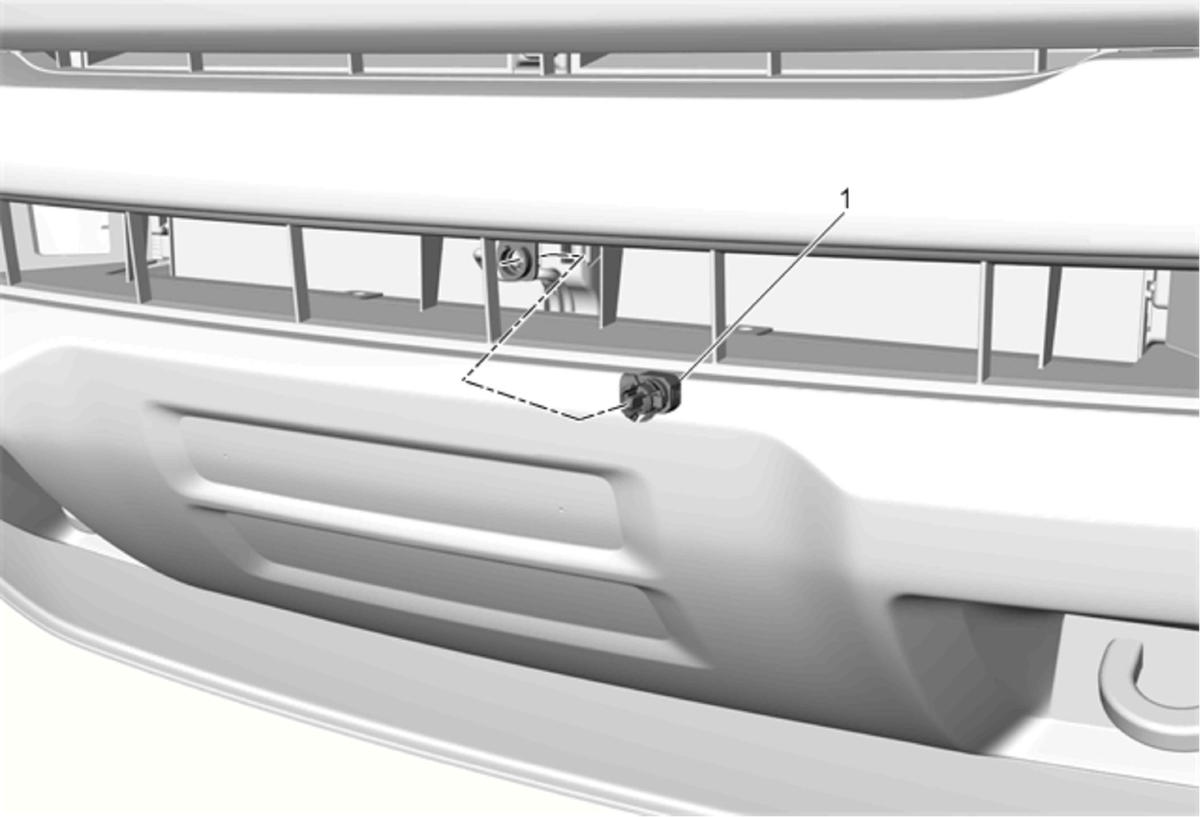

Fig 1: Ambient Air Temperature Gauge Sensor (GMC)
Courtesy of GENERAL MOTORS COMPANY
Call out
Component Name
1
Ambient Air Temperature Gauge Sensor
Procedure
Disconnect the ambient air temperature gauge sensor electrical connector.
Depress the ambient air temperature gauge sensor tabs to remove from the ambient air temperature sensor bracket.
