Driver Information Center Controls (UDC)

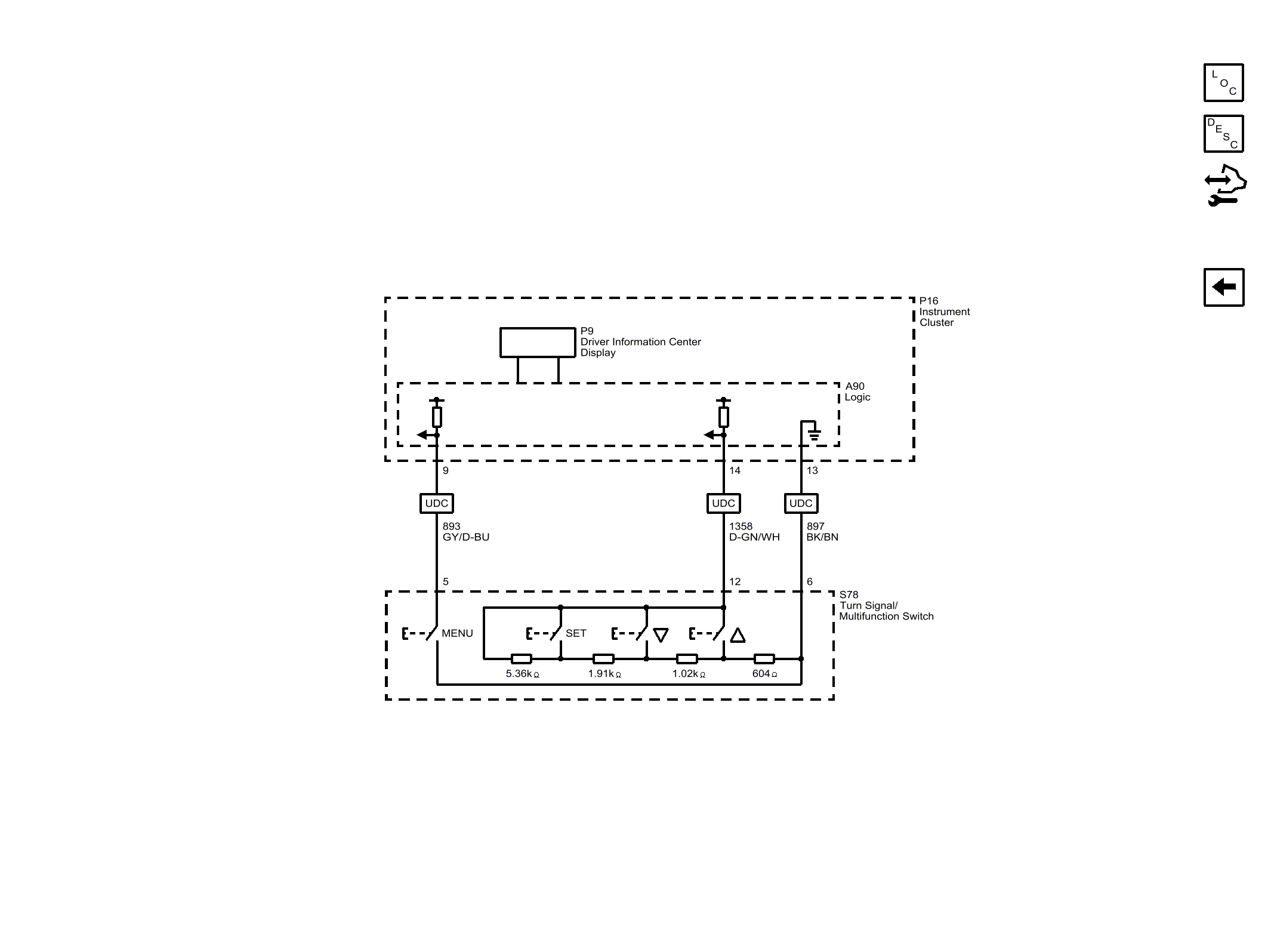

Fig 1: Driver Information Center Controls (UDC)

GM4507504

Courtesy of GENERAL MOTORS COMPANY
