Instrument Panel Center Air Outlet Replacement (IO5/IO6)

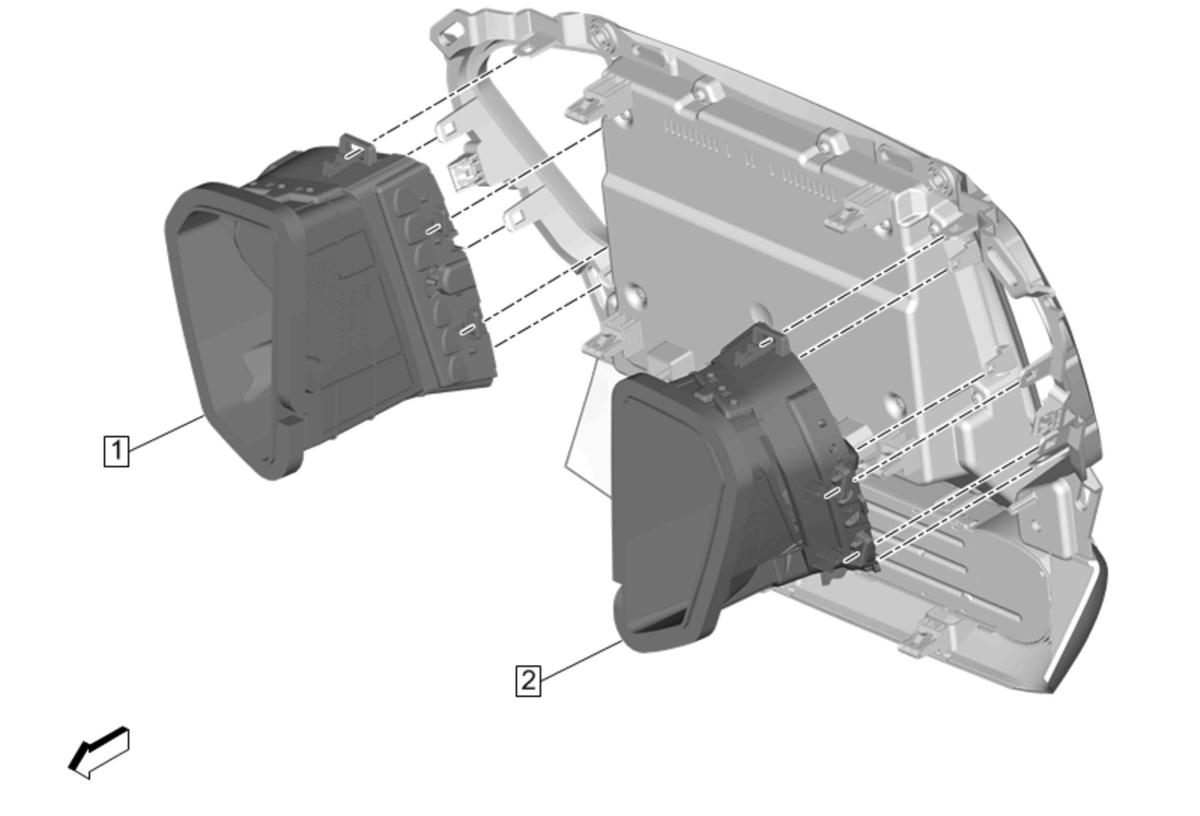

Fig 1: Instrument Panel Center Air Outlet (IO5/IO6)
GM4404911Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Radio Control Assembly. Refer to Radio Control Assembly Replacement
1 Instrument Panel Center Air Outlet - Right Side
Procedure
Using a suitable tool, remove the retainer.
2 Instrument Panel Center Air Outlet - Left Side
Procedure
Using a suitable tool, remove the retainer.
