Rear Compartment Lid Hinge Cover Replacement
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

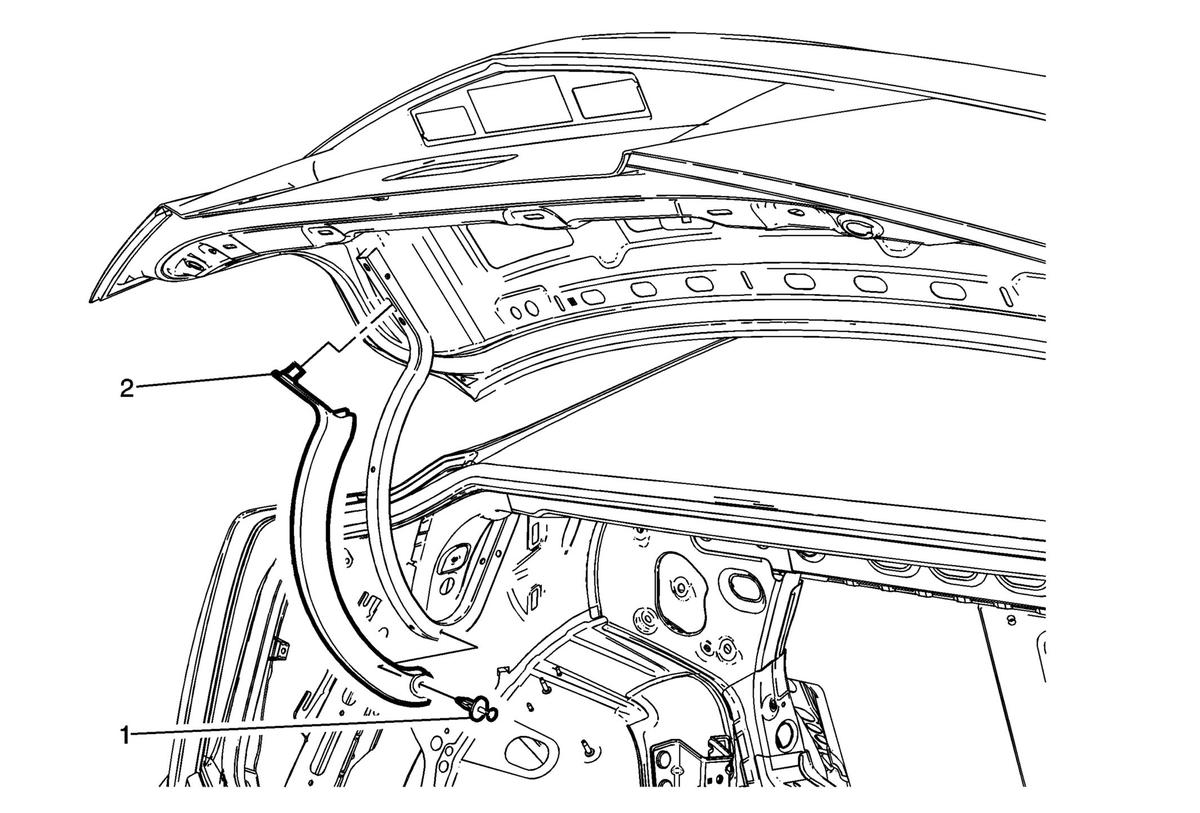

| Callout |
Component Name |
| 1 |
Rear Compartment Lid Hinge Cover Push-In Retainer |
| 2 |
Rear Compartment Lid Hinge Cover
Procedure
Pull the upper end of the rear compartment lid hinge cover to release the upper retainer. |
