M7 Transmission Shift Lock Control Solenoid Actuator (MYA)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

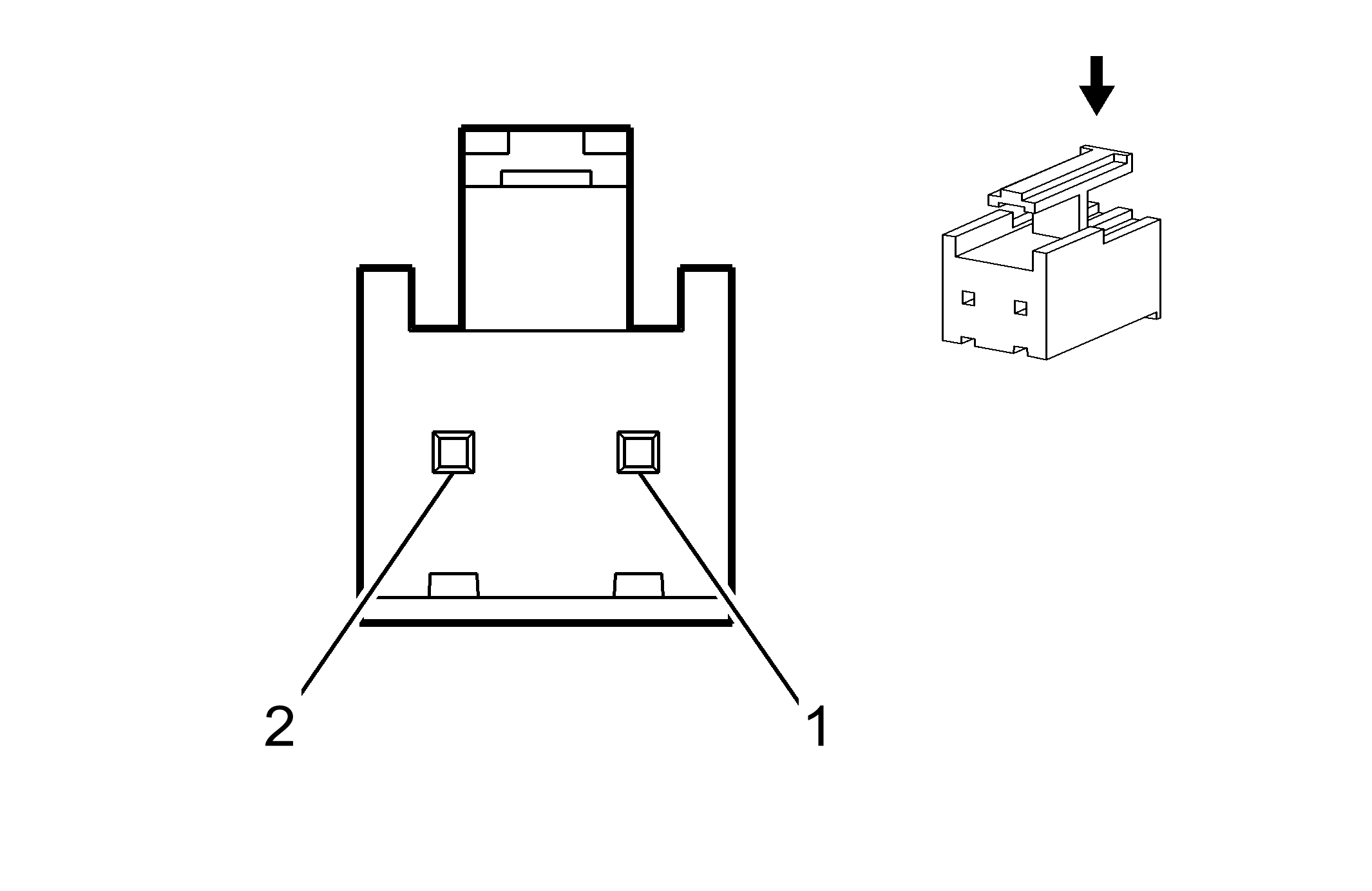

Connector Part Information
- Harness Type: Shift Lever
- OEM Connector: Not Available
- Service Connector: Service by Component - See Part Catalog
- Description: 2-Way F (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
RD/WH |
- |
Park Lock Solenoid Control |
I |
- |
| 2 |
- |
BK |
- |
Ground |
I |
- |
