M28R High Beam Solenoid Actuator - Right (T4F)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

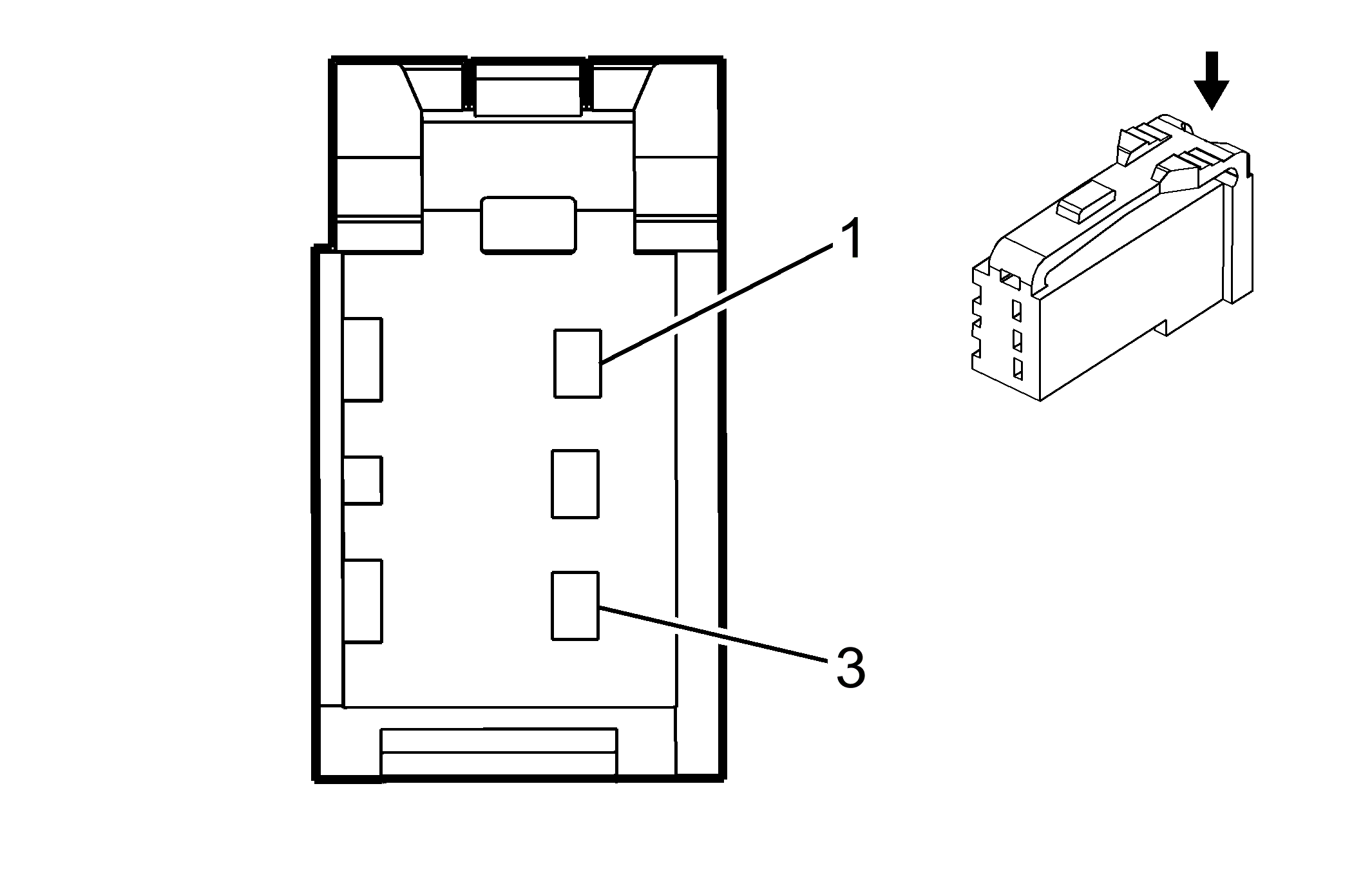

Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: MG651444
- Service Connector: Service by Component - See Part Catalog
- Description: 3-Way F Lampsocket Sealed (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-41 (BU) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.52 |
BK/WH |
650 |
Ground |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.52 |
RD |
311 |
Right Headlamp High Beam Supply Voltage |
I |
- |
