Pressure and Shift Controls

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

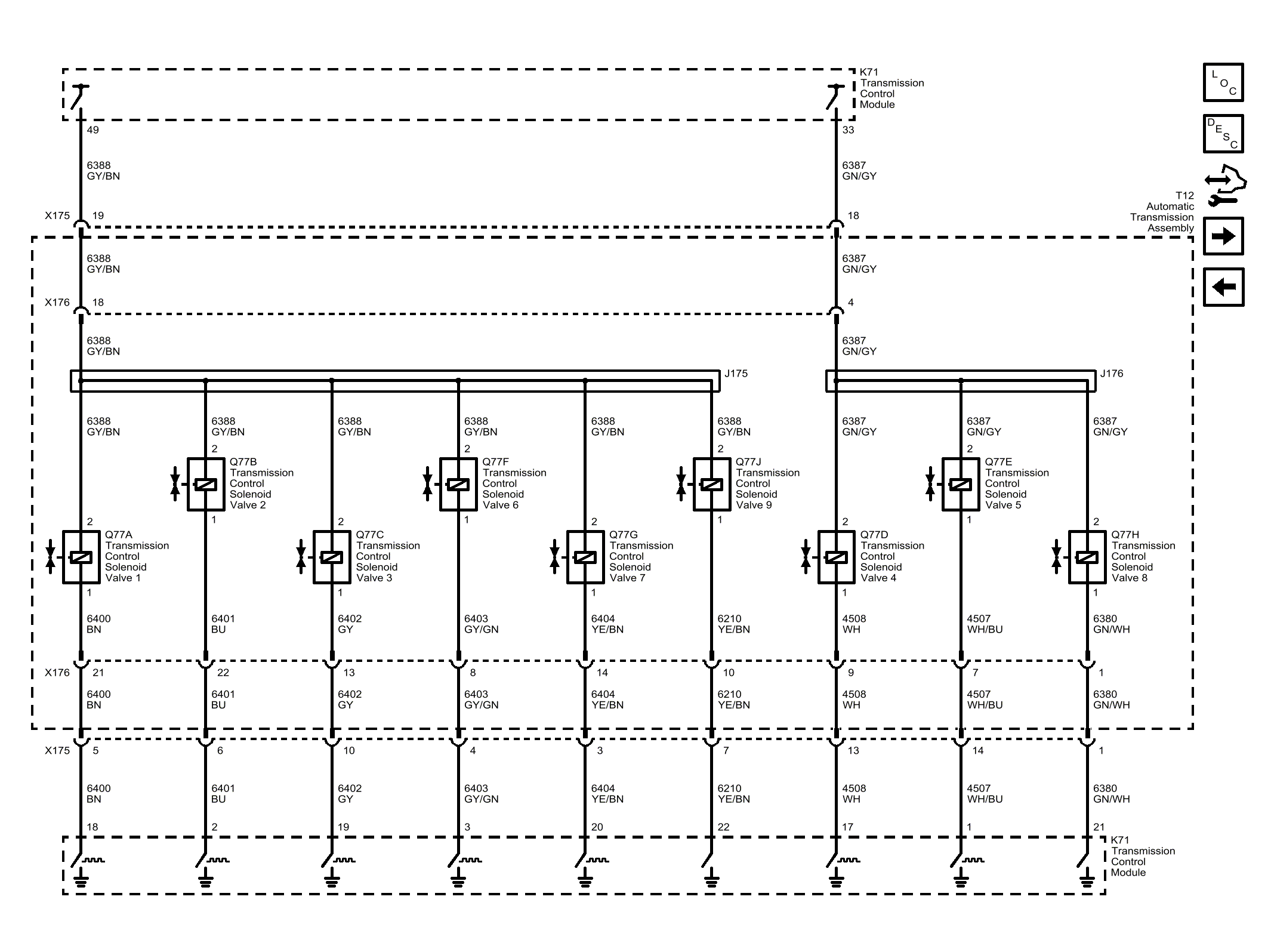

Fig 1: Pressure and Shift Controls
GM4055035Courtesy of GENERAL MOTORS COMPANY
