Power, Ground, Serial Data, MIL and Fluid Temperature

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

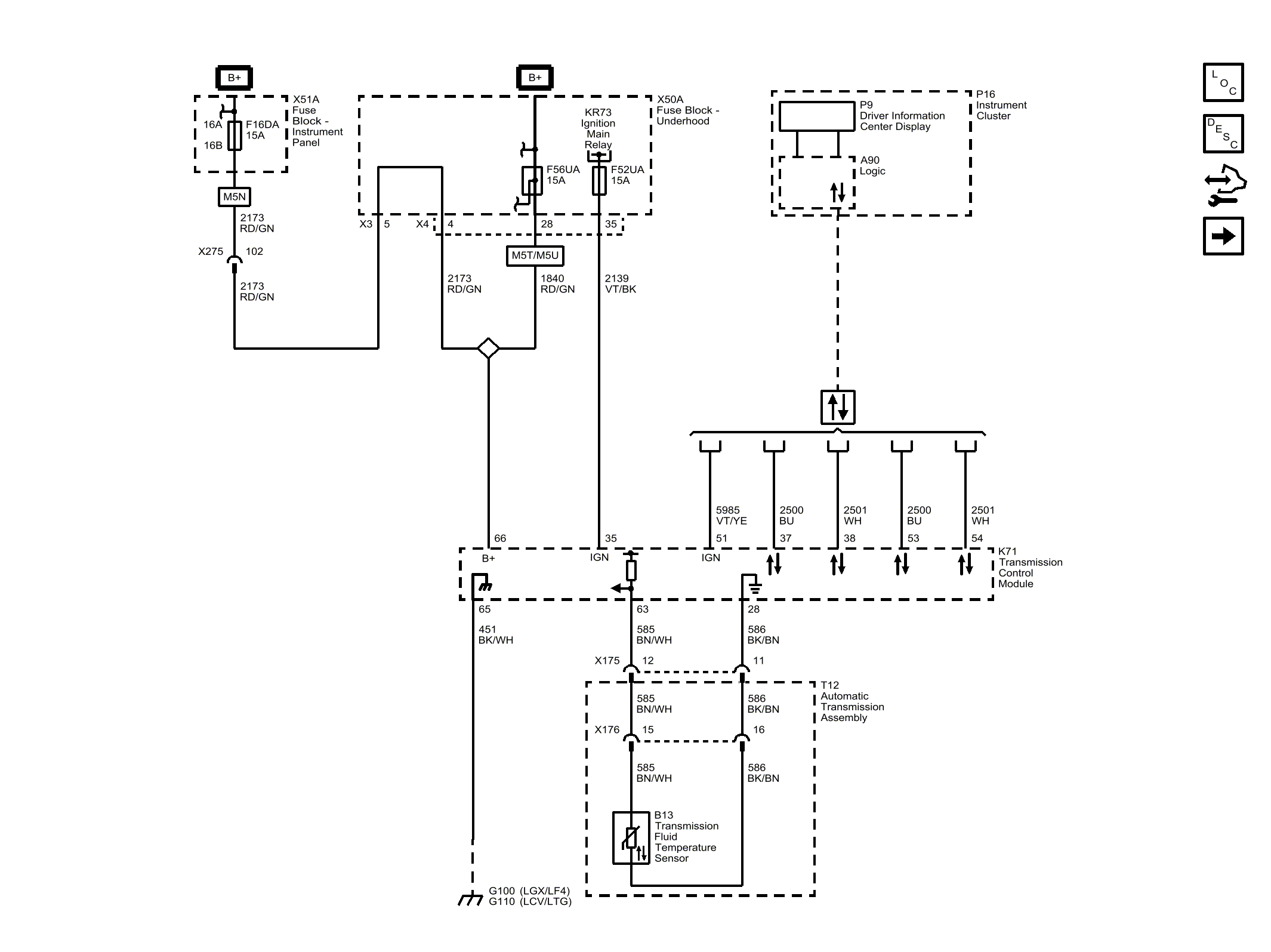

Fig 1: Power, Ground, Serial Data, MIL and Fluid Temperature
GM4055033Courtesy of GENERAL MOTORS COMPANY
