X510 Driver Door Harness to Driver Outside Rearview Mirror Harness

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

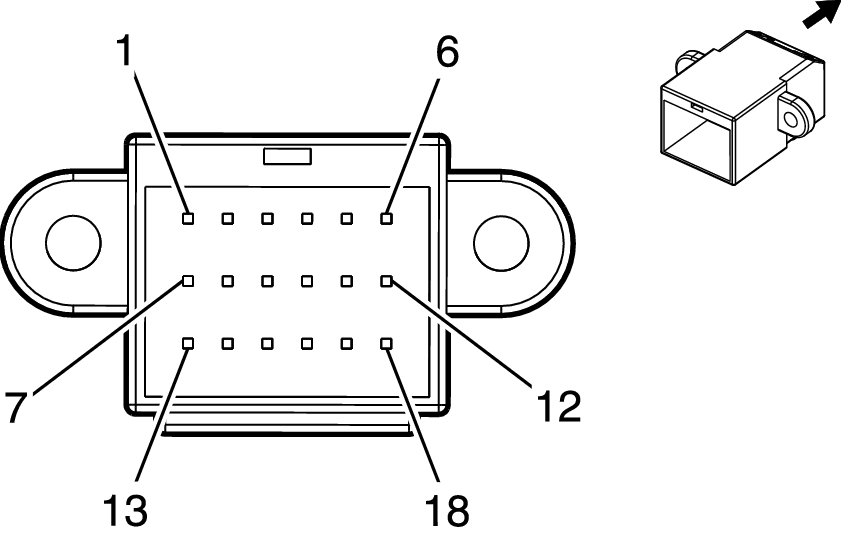

Connector Part Information Harness Type: Driver Door OEM Connector: 13574827 Service Connector: Service by Harness - See Part Catalog Description: 18-Way F 0.64 Series (BK)	Connector Part Information Harness Type: Driver Outside Rearview Mirror OEM Connector: ARVWSB-18-3AK Service Connector: Service by Harness - See Part Catalog Description: 18-Way M 0.64 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	GY/GN	5996	I	-	Driver Outside Rear View Mirror Puddle Lamp Control	1	0.32	GY	5996	II	-
2	0.35	YE/WH	1690	I	-	Automatic Day/Night Mirror Signal	2	0.32	OG/BK	1690	II	-
3	0.35	BK/BN	3393	I	A45	Driver Mirror Position Sensor Low Reference	3	0.32	PK/WH	3393	II	A45
4	0.5 0.35	GY/WH VT/YE	3411 3409	I I	DR4+A45 DR4-A45	Driver Mirror Motor Fold Out Control Mirror Motor Fold Out Control	4	0.32 0.32	PK PK	3411 3409	II II	DR4+A45 DR4-A45
5	0.5	BK	2150	I	-	Ground	5	0.32	BK	2150	II	-
6	-	-	-	-	-	Not Occupied	6	-	-	-	-	-
7	0.35	WH/YE	3395	I	A45	Driver Mirror Position Sensor Left (-) Right (+) Signal	7	0.32	L-BU/WH	3395	II	A45
8	0.5	BN/YE	2267	I	-	Mirror Heating Element Control	8	0.32	BK/WH	2267	II	-
9	0.35	VT/BU	3390	I	-	Driver Mirror Motor Up (+) Down (-) Control	9	0.32	D-GN	3390	II	-
10	0.35	BN/BK	3389	I	-	Driver Mirror Motor Right (+) Left (-) Control	10	0.32	VT	3389	II	-
11	-	-	-	-	-	Not Occupied	11	-	-	-	-	-
12	0.35	YE/BN	3391	I	-	Driver Mirror Motor Common Control	12	0.32	WH	3391	II	-
13	0.5	BU/WH	1314	I	DR2/DR4	Left Front Turn Signal Lamp Control	13	0.32	OG	1314	II	DR2/DR4
14	0.35	GY/BN	3394	I	A45	Driver Mirror Position Sensor Up (+) Down (-) Signal	14	0.32	BU/WH	3394	II	A45
15	0.5	GY/YE	5853	I	-	Driver Side Object Detection LED Signal 1	15	0.32	BU	5853	II	-
16	0.35	BK/YE	1691	I	-	Automatic Day/Night Mirror Low Reference	16	0.32	GN/WH	1691	II	-
17	0.35	VT/RD	3392	I	A45	Driver Mirror Position Sensor 5V Reference	17	0.32	GY/WH	3392	II	A45
18	0.5 0.35	WH/GN WH/BN	3412 3410	I I	DR4+A45 DR4-A45	Driver Mirror Motor Fold In Control Mirror Motor Fold In Control	18	0.32 0.32	YE YE	3412 3410	II II	DR4+A45 DR4-A45
