X337 Headliner Harness to Body Harness

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

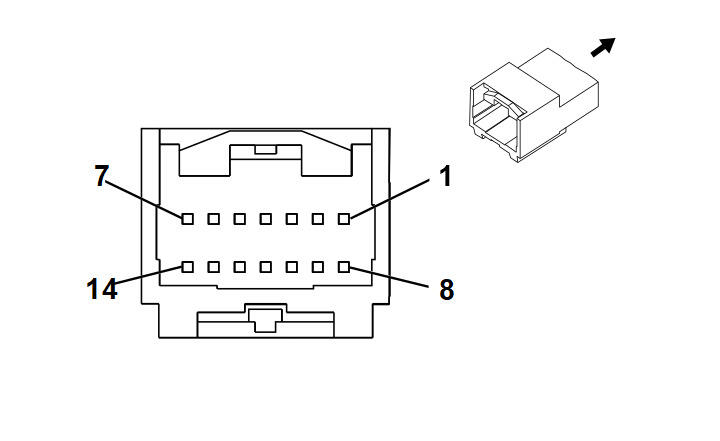

Connector Part Information Harness Type: Headliner OEM Connector: 7283-5832 Service Connector: 15380363 Description: 14-Way F 040 Series (WH)	Connector Part Information Harness Type: Body OEM Connector: 7282-5832 Service Connector: 19119907 Description: 14-Way M 040 Series (NA)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575293	J-35616-16 (LT GN)	J-38125-553	7116-4231-08	Yazaki 14	K	K
II	13575227	J-35616-17 (L-GN)	J-38125-553	7114-4231-08	Yazaki 14	E	C
III	13575227	J-35616-17 (L-GN)	J-38125-553	7114-4231-08	Yazaki 14	K	K

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	RD/GN	3840	I	UGN/UHX	Battery Positive Voltage	1	0.35	RD/GN	3840	III	UGN/UHX
2	0.35	GN/WH	24	I	DD8	Backup Lamp Control	2	0.5	GN/WH	24	II	DD8
3	0.35	RD/BU	4540	I	UTU/UTV	Battery Positive Voltage	3	0.35	RD/BU	4540	III	UTU/UTV
4	0.35	WH/BU	5986	I	UHX-UGN	Serial Data Communication Enable	4	0.35	WH/BU	5986	III	UHX-UGN
5	0.35	GY/VT	3808	I	UGN	Front Object Sensor Control 2	5	0.35	GY/VT	3808	III	UGN
6	-	-	-	-	-	Not Occupied	6	-	-	-	-	-
7	0.35	GY/GN	328	I	-	Interior Lamp Defeat Switch Signal	7	0.35	GY/GN	328	III	-
8	0.35	GY	156	I	-	Courtesy Lamp Switch Signal	8	0.35	GY	156	III	-
9	0.35	BK/GY	128	I	CF5	Sunroof Switch Low Reference	9	0.35	BK/GY	128	III	CF5
10	0.35	BU/VT	5027	I	CF5	Sunroof Switch Data 1 Signal	10	0.35	BU/VT	5027	III	CF5
11	0.35	WH/GN	3031	I	CF5	Sunroof Vent Switch Signal	11	0.35	WH/GN	3031	III	CF5
12 - 14	-	-	-	-	-	Not Occupied	12 - 14	-	-	-	-	-
