X335 Headliner Harness to Body Harness
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

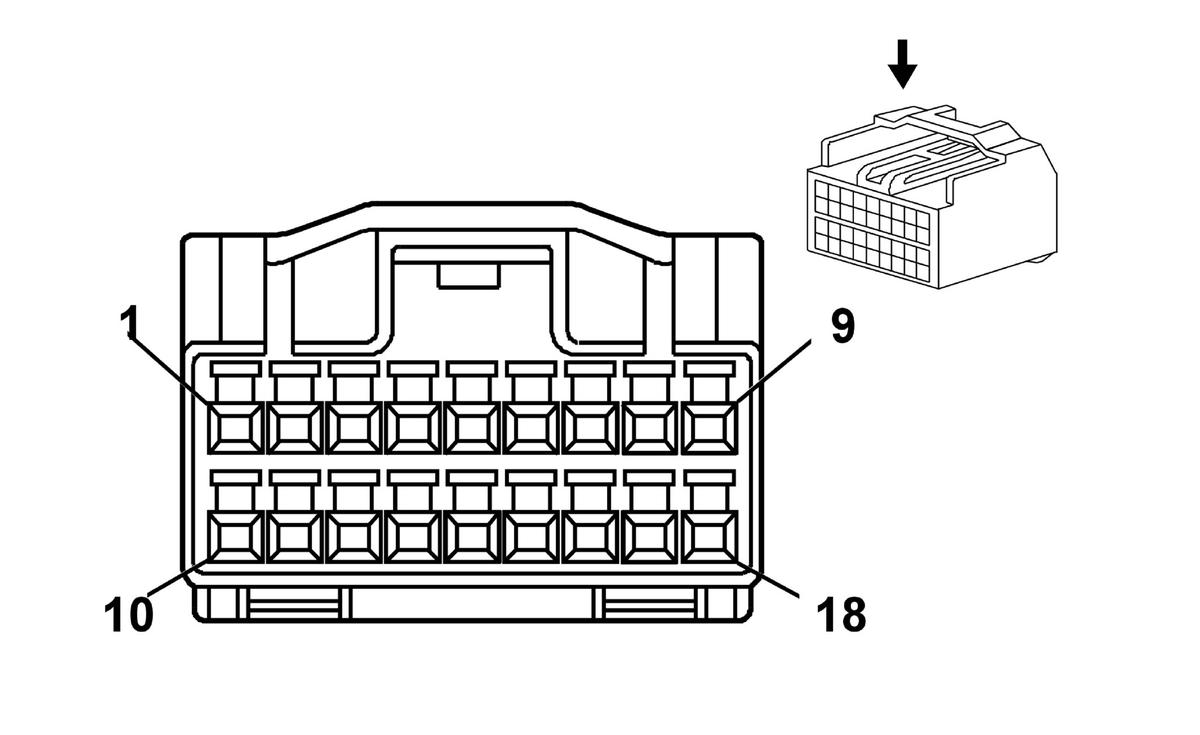

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 7283-5833
- Service Connector: 19300559
- Description: 18-Way F 040 Series (NA)
|

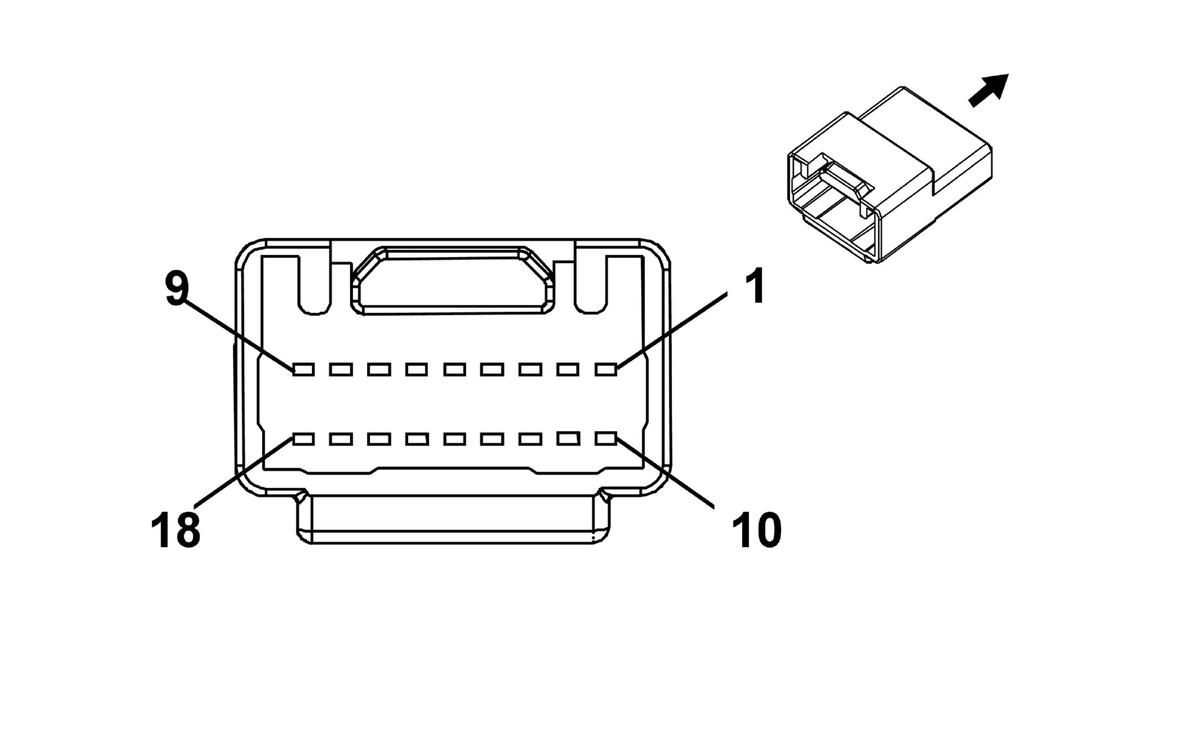

Connector Part Information
- Harness Type: Body
- OEM Connector: X49682-J637
- Service Connector: 19258652
- Description: 18-Way M 040 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575293 |
J-35616-16 (LT GN) |
J-38125-553 |
7116-4231-08 |
Yazaki 14 |
E |
C |
| II |
13575293 |
J-35616-16 (LT GN) |
J-38125-553 |
7116-4231-08 |
Yazaki 14 |
K |
K |
| III |
13575227 |
J-35616-17 (L-GN) |
J-38125-553 |
7114-4231-08 |
Yazaki 14 |
E |
C |
| IV |
13575227 |
J-35616-17 (L-GN) |
J-38125-553 |
7114-4231-08 |
Yazaki 14 |
K |
K |
| V |
Not Required |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/BN |
654 |
I |
UE1/(IO6+MAW) |
Cellular Telephone Microphone Low Reference |
1 |
0.35 |
BK/BN |
654 |
IV |
UE1/(IO6+MAW) |
| 2 |
0.5 |
BU |
655 |
I |
UE1/(IO6+MAW) |
Cellular Telephone Microphone Signal |
2 |
0.35 |
BU |
655 |
IV |
UE1/(IO6+MAW) |
| 3 |
0.35 |
RD/BU |
4540 |
II |
CE1/UG1 |
Battery Positive Voltage |
3 |
0.35 |
RD/BU |
4540 |
IV |
CE1/UG1 |
| 4 |
0.35 |
GN/BK |
2515 |
II |
UE1 |
Keypad Control |
4 |
0.35 |
GN/BK |
2515 |
IV |
UE1 |
| 5 |
0.35 |
GN/WH |
2514 |
II |
UE1 |
Keypad Signal |
5 |
0.35 |
GN/WH |
2514 |
IV |
UE1 |
| 6 |
0.5 |
GN/BK |
3008 |
I |
- |
Noise Reduction Microphone 1 Low Reference |
6 |
0.35 |
GN/BK |
3008 |
IV |
- |
| 7 |
0.5 |
GN/BN |
3005 |
I |
- |
Noise Reduction Microphone 1 Signal |
7 |
0.35 |
GN/BN |
3005 |
IV |
- |
| 8 |
0.5 |
GY/BN |
3010 |
I |
- |
Noise Reduction Microphone 3 Low Reference |
8 |
0.35 |
GY/BN |
3010 |
IV |
- |
| 9 |
0.5 |
GY/BU |
3007 |
I |
- |
Noise Reduction Microphone 3 Signal |
9 |
0.35 |
GY/BU |
3007 |
IV |
- |
| 10 |
0.35 |
BK/YE |
1691 |
II |
DR2/DR4 |
Automatic Day/Night Mirror Low Reference |
10 |
0.35 |
BK/YE |
1691 |
IV |
DR2/DR4 |
| 11 |
0.35 |
YE/WH |
1690 |
II |
DR2/DR4 |
Automatic Day/Night Mirror Signal |
11 |
0.35 |
YE/WH |
1690 |
IV |
DR2/DR4 |
| 12 |
0.35 |
GN/BN |
6132 |
II |
CE1/UTU/UTV |
Local Interconnect Network Serial Data Bus 1 |
12 |
0.35 |
GN/BN |
6132 |
IV |
CE1/UTU/UTV |
| 13 |
0.5 |
GY |
157 |
I |
- |
Interior Lamp Control |
13 |
0.5 |
GY |
157 |
III |
- |
| 14 |
0.35 |
YE/VT |
2516 |
II |
UE1 |
Keypad Green LED Control |
14 |
0.35 |
YE/VT |
2516 |
IV |
UE1 |
| 15 |
0.35 |
BN/WH |
2517 |
II |
UE1 |
Keypad Red LED Control |
15 |
0.35 |
BN/WH |
2517 |
IV |
UE1 |
| 16 |
0.5 |
BK |
2350 |
I |
- |
Ground |
16 |
0.5 |
BK |
2350 |
V |
- |
| 17 |
0.5 |
BU/BK |
3009 |
I |
- |
Noise Reduction Microphone 2 Low Reference |
17 |
0.35 |
BU/BK |
3009 |
IV |
- |
| 18 |
0.5 |
BU/YE |
3006 |
I |
- |
Noise Reduction Microphone 2 Signal |
18 |
0.35 |
BU/YE |
3006 |
IV |
- |
