X310 Body Harness to Driver Seat Harness

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

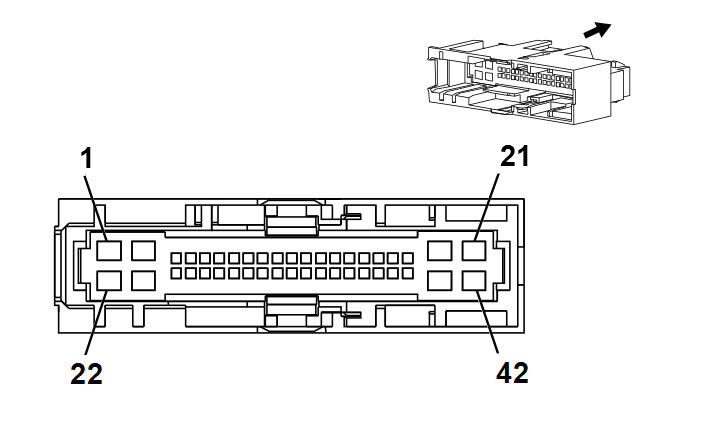

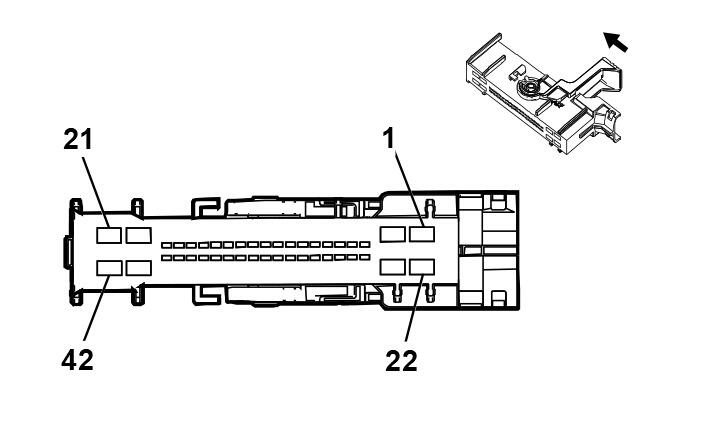

Connector Part Information Harness Type: Body OEM Connector: 13597188 Service Connector: 19332682 Description: 42-Way F 1.2, 2.8 Series (YE)	Connector Part Information Harness Type: Driver Seat OEM Connector: 13586234 Service Connector: Service by Harness - See Part Catalog Description: 42-Way M 0.64, 2.8 Series (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575838	J-35616-35 (VT)	J-38125-11A	7116-4110-02	Yazaki 9	E	C
II	13575839	J-35616-35 (VT)	J-38125-11A	7116-4112-02	Yazaki 9	C	D
III	13582232	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
IV	19300649	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
V	19300649	J-35616-64B (LT BU)	J-38125-553	Not Available	Not Available	Not Available	Not Available
VI	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	2.5	RD/YE	5040	II	-	Battery Positive Voltage	1	2.5	RD/YE	5040	VI	-
2	2	YE/WH	296	II	COUPE+AQ9	Passenger Power Seat Horizontal Motor Forward Control	2	2	YE/WH	296	VI	COUPE+AQ9
3	0.35	BK/OG	1363	V	-	Driver Seat Belt Switch Low Reference	3	0.35	BK/OG	1363	VI	-
4	0.35	OG/BN	238	V	-	Driver Seat Belt Switch Signal	4	0.35	OG/BN	238	VI	-
5 - 6	-	-	-	-	-	Not Occupied	5 - 6	-	-	-	-	-
7	0.35	BK/BU	5978	V	A45	Memory Switch Low Reference	7	0.35	BK/BU	5978	VI	A45
8	0.35	WH	615	V	A45	Memory Seat Switch Signal 1	8	0.35	WH	615	VI	A45
9	0.35	GN	5060	V	A45/W2E	Low Speed GMLAN Serial Data	9	0.35	GN	5060	VI	A45/W2E
10	0.35	WH/BN	3907	V	COUPE+AQ9	Passenger Power Seat Easy Entry Forward Switch Signal	10	0.35	WH/BN	3907	VI	COUPE+AQ9
11	0.35	YE/BU	3908	V	COUPE+AQ9	Passenger Power Seat Easy Entry Rearward Switch Signal	11	0.35	YE/BU	3908	VI	COUPE+AQ9
12 - 13	-	-	-	-	-	Not Occupied	12 - 13	-	-	-	-	-
14	0.35	YE/BN	4270	V	COUPE+AQ9	Passenger Power Seat Horizontal Forward Switch Signal	14	0.35	YE/BN	4270	VI	COUPE+AQ9
15	0.35	GY/GN	4271	V	COUPE+AQ9	Passenger Power Seat Horizontal Rearward Switch Signal	15	0.35	GY/GN	4271	VI	COUPE+AQ9
16 - 17	-	-	-	-	-	Not Occupied	16 - 17	-	-	-	-	-
18	0.35	YE/OG	2138	III	-	Left Front Side Impact Module Low Control	18	0.35	YE/OG	2138	VI	-
19	0.35	OG/BU	2137	III	-	Left Front Side Impact Module High Control	19	0.35	OG/BU	2137	VI	-
20	-	-	-	-	-	Not Occupied	20	-	-	-	-	-
21	0.5	RD/WH	2040	I	A45/W2E	Battery Positive Voltage	21	0.5	RD/WH	2040	VI	A45/W2E
22	2.5	BK	2150	II	-	Ground	22	2.5	BK	2150	VI	-
23	2	YE/BU	290	II	COUPE+AQ9	Passenger Power Seat Horizontal Motor Rearward Control	23	2	YE/BU	290	VI	COUPE+AQ9
24 - 25	-	-	-	-	-	Not Occupied	24 - 25	-	-	-	-	-
26	0.75	BN/VT	2077	IV	KA1	Driver Heated Seat Element Control	26	0.75	BN/VT	2077	VI	KA1
27	0.75	BN	2432	IV	KA1	Driver Heated Back Element Control	27	0.75	BN	2432	VI	KA1
28	0.35	BU/GN	614	V	A45	Memory Seat Switch Set Signal	28	0.35	BU/GN	614	VI	A45
29	0.35	GN/WH	7530	V	A45	Local Interconnect Network Serial Data Bus 8	29	0.35	GN/WH	7530	VI	A45/W2E
30 - 38	-	-	-	-	-	Not Occupied	30 - 38	-	-	-	-	-
39	0.35	OG/GN	7203	III	-	Left Front Seat Belt Pretensioner Stage 2 High Control	39	0.35	OG/GN	7203	VI	-
40	0.35	WH/OG	7206	III	-	Left Front Seat Belt Pretensioner Stage 2 Low Control	40	0.35	WH/OG	7206	VI	-
41	0.5	RD/VT	1940	I	COUPE+AQ9	Battery Positive Voltage	41	0.5	RD/VT	1940	VI	COUPE+AQ9
42	-	-	-	-	-	Not Occupied	42	-	-	-	-	-
