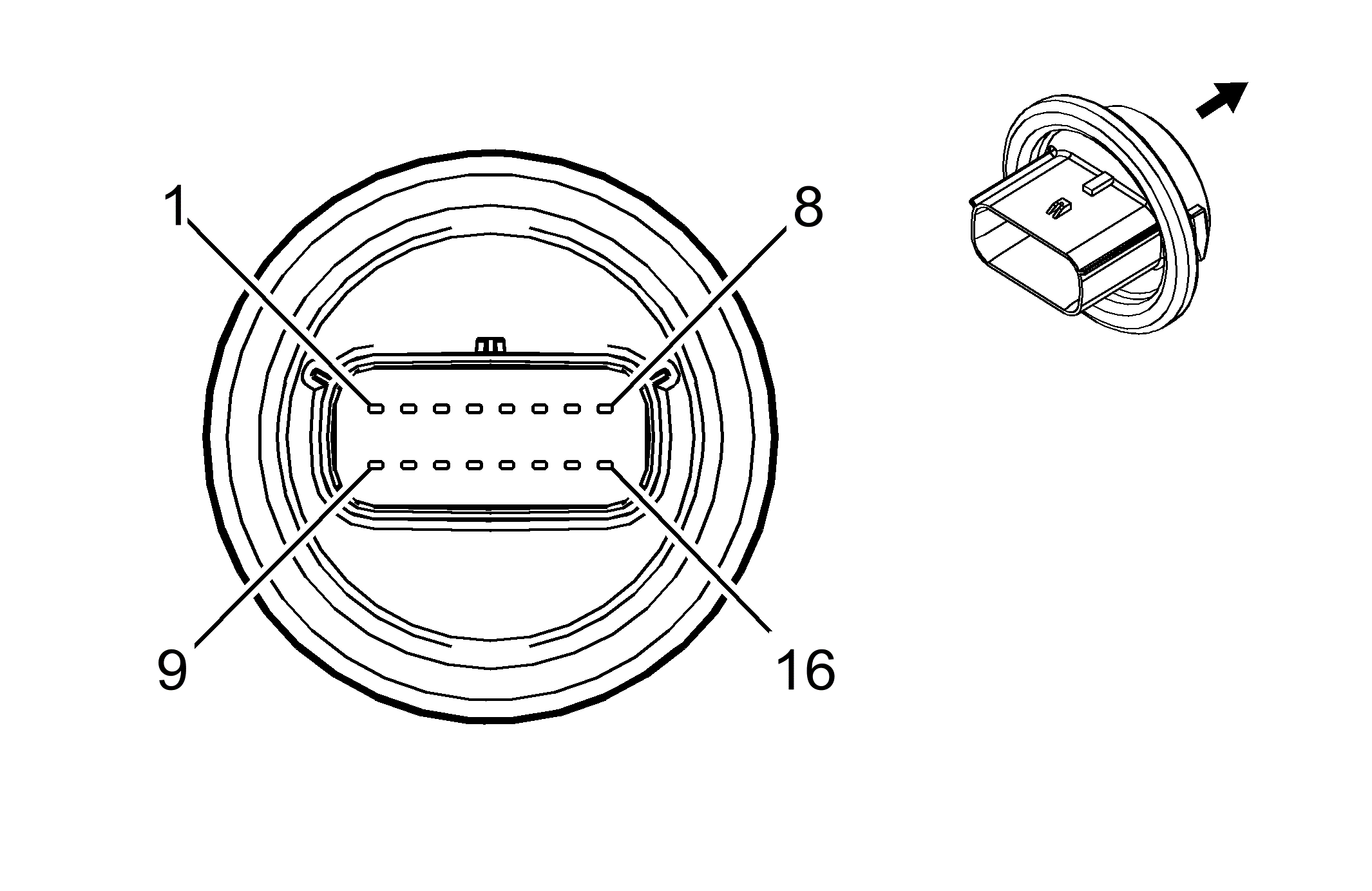

X120 Forward Lamp Harness to Right Headlamp Harness (T4F+T94)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.


Connector Part Information Harness Type: Forward Lamp OEM Connector: 13583545 Service Connector: 19301396 Description: 16-Way F 1.5 Series, Sealed (BK)	Connector Part Information Harness Type: Right Headlamp OEM Connector: 34840-8010 Service Connector: Service by Harness - See Part Catalog Description: 16-Way M MX150 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300635	J-35616-2A (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
II	Not Required	J-35616-3 (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BK	650	I	-	Ground	1	0.52	BK/WH	650	II	-
2	0.5	WH	311	I	-	Right Headlamp High Beam Control	2	0.52	RD	311	II	-
3	1	BK	650	I	-	Ground	3	0.52	BN	650	II	-
4	1	YE	312	I	-	Right Headlamp Low Beam Control	4	0.52	YE	312	II	-
5	0.5	BK	650	I	-	Ground	5	0.52	GY	650	II	-
6	0.5	GN/VT	1315	I	-	Right Front Turn Signal Lamp Control	6	0.52	D-GN	1315	II	-
7	0.35	BK	650	I	-	Ground	7	0.52	BK	650	II	-
8	0.35	RD/BN	1440	I	-	Battery Positive Voltage	8	0.52	OG	1440	II	-
9	0.35	GN/VT	7528	I	-	Local Interconnect Network Serial Data Bus 6	9	0.52	WH/D-GN	7528	II	-
10	0.5	BK	650	I	-	Ground	10	0.82	D-BU	650	II	-
11	0.75	BU/BN	7539	I	-	Right Front DRL Control	11	0.82	PK	7539	II	-
12 - 16	-	-	-	-	-	Not Occupied	12 - 16	-	-	-	-	-
