Auxiliary Fluid Accumulator Installation (With Stop/Start)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

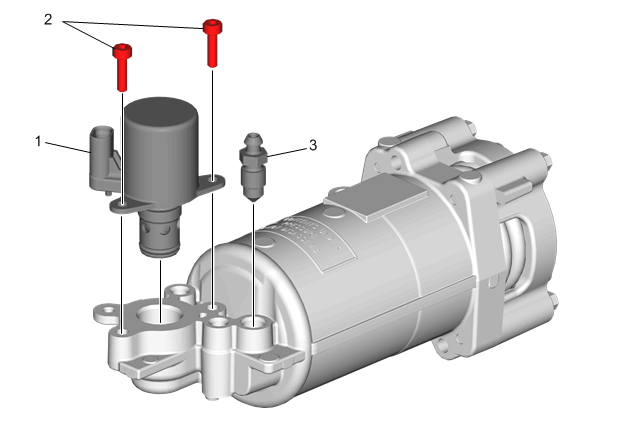

Auxiliary Fluid Accumulator Solenoid and Bleeder Valve Installation
| Callout | Component Name |
|---|---|
| 1 | A/Trans Auxiliary Fluid Accumulator Solenoid |
| 2 | A/Trans Auxiliary Fluid Accumulator Solenoid Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 3 | A/Trans Auxiliary Fluid Accumulator Bleeder Valve Tighten 11 N.m (97 lb in) |

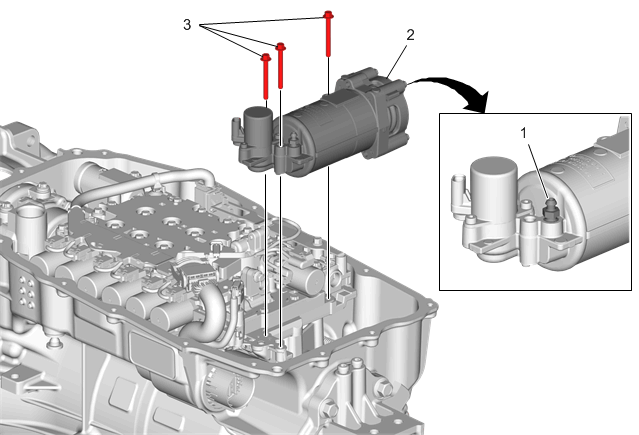

Auxiliary Fluid Accumulator Installation
| Callout | Component Name |
|---|---|
| 1 | A/Trans Auxiliary Fluid Accumulator Bleeder Valve
NOTE:
Ensure bleeder valve is securely tightened. |
| 2 | A/Trans Auxiliary Fluid Accumulator |
| 3 | A/Trans Auxiliary Fluid Accumulator Bolt (Qty: 3) Procedure Connect the accumulator solenoid electrical connector. Tighten 8 N.m (71 lb in) |
