Front Seat Heater Control Module Replacement (With W2E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

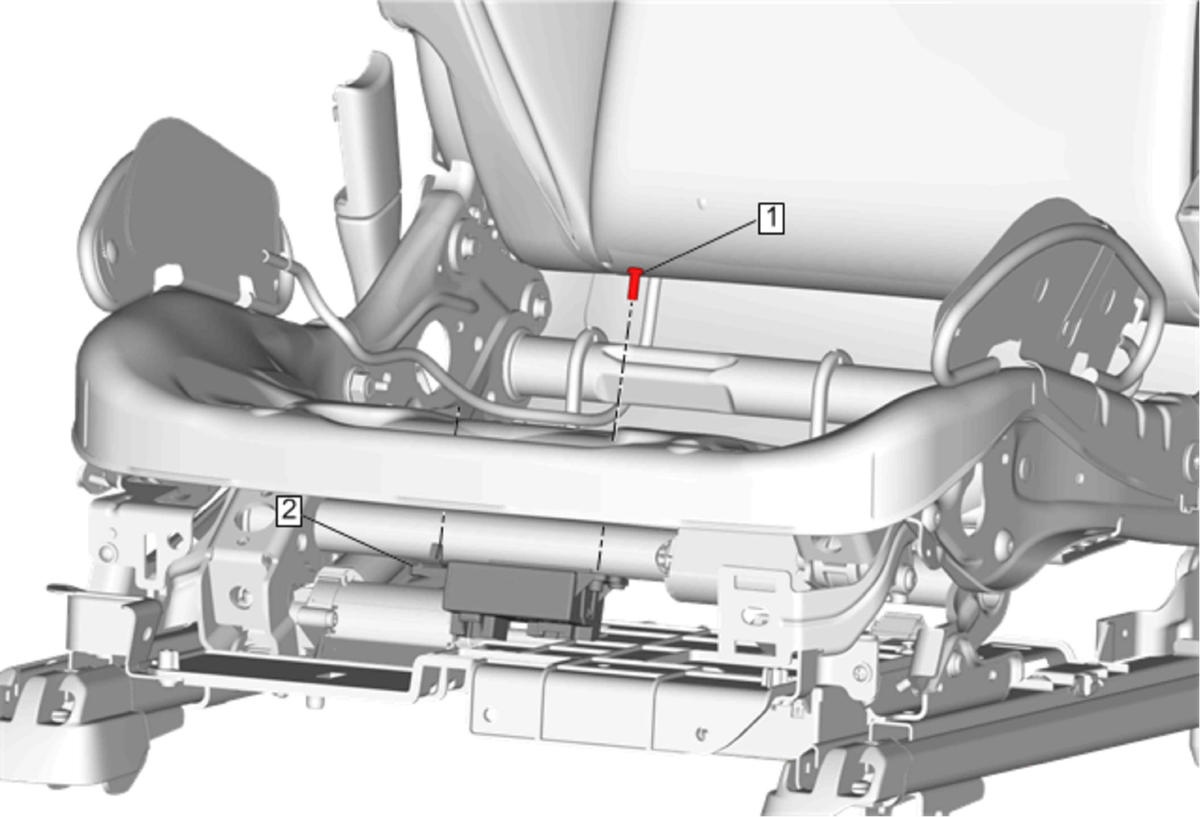

Fig 1: Front Seat Heater Control Module (With W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Driver or Passenger Seat Cushion Outer Finish Panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (with W2E) Disengage the J-channel retainers from the seat cushion frame and reposition the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (with W2E)
1	Front Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector.
