Section 254 (Automatic Transmission - 8L45 (M5N M5T) Or 8L90 (M5U) - Description And Operation)
>>
Description and Operation
>>
Drive Range, Fifth Gear
>>
Drive Range, Fifth Gear - A/T System Hydraulic Diagram
Drive Range, Fifth Gear - A/T System Hydraulic Diagram
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

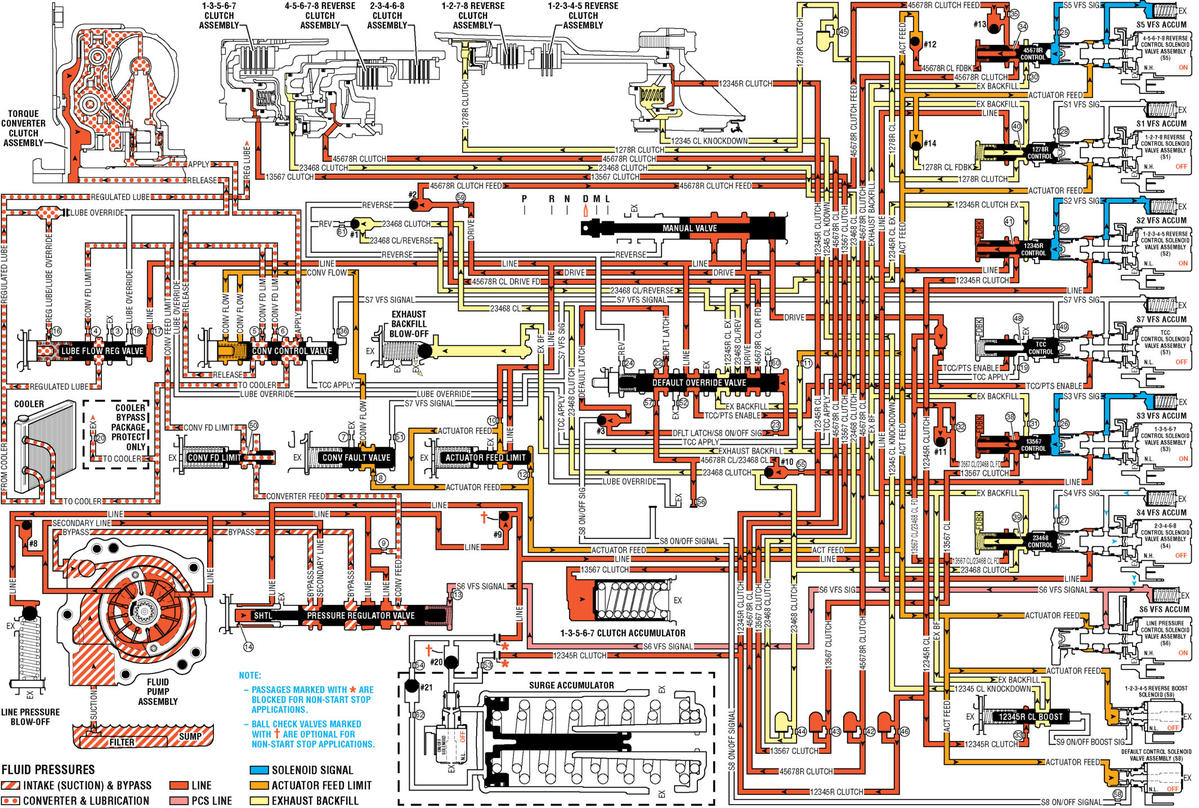

Fig 1: Drive Range, Fifth Gear Hydraulic Diagram
Courtesy of GENERAL MOTORS COMPANY
