X150 Body Harness to Engine Harness

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

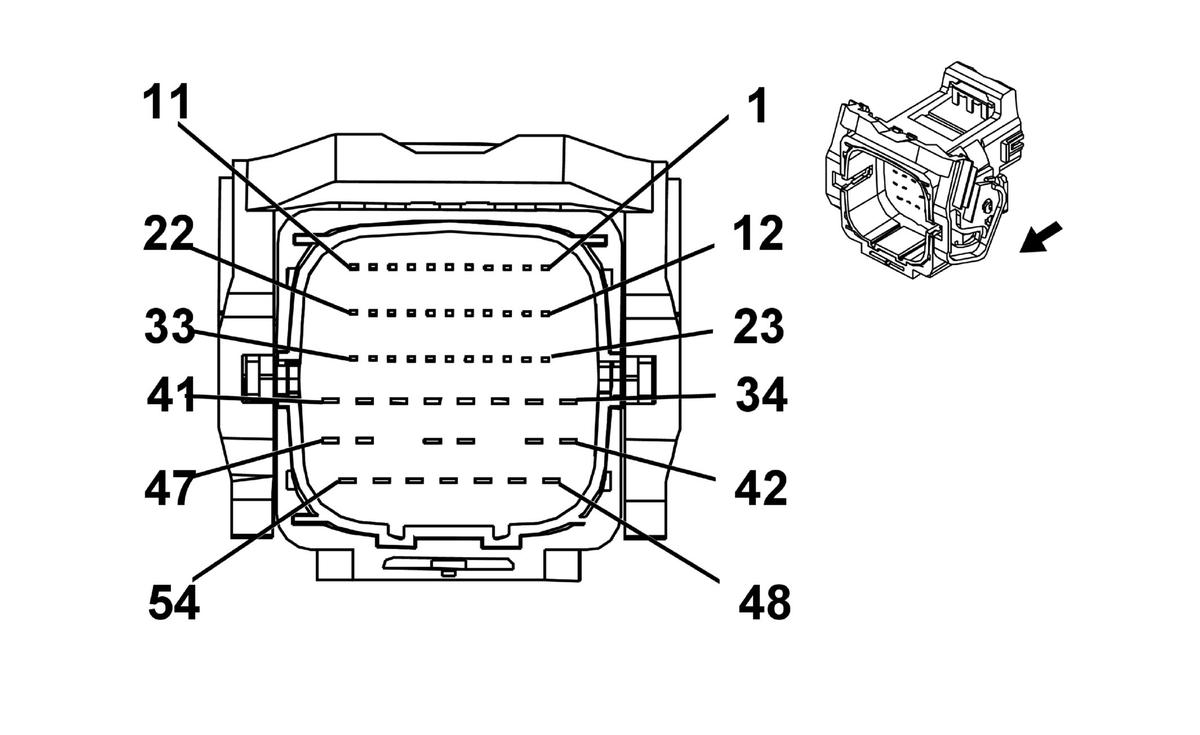

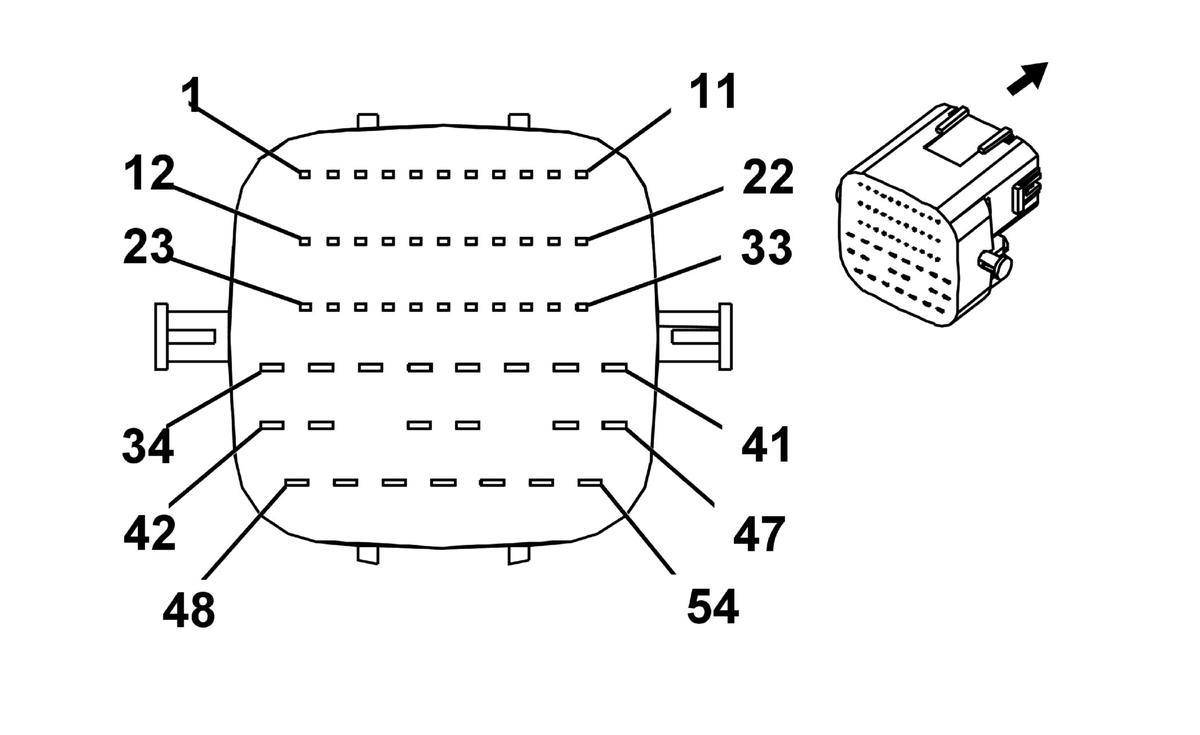

Connector Part Information Harness Type: Body OEM Connector: X40083-C295 Service Connector: 19300563 Description: 54-Way F Sealed (BK)	Connector Part Information Harness Type: Engine OEM Connector: X40082-C293 Service Connector: 19300564 Description: 54-Way M Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13587473	J-35616-18 (BK)	J-38125-552	7116-4026	Yazaki 11	E	1
II	19300449	J-35616-18 (BK)	J-38125-552	7116-4025	Yazaki 11	E	1
III	19300636	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
IV	19300637	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
V	13575219	J-35616-19 (BK)	J-38125-553	Not Available	Not Available	Not Available	Not Available
VI	19300653	J-35616-5 (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available
VII	19300655	J-35616-19 (BK)	J-38125-553	Not Available	Not Available	Not Available	Not Available
VIII	19300656	J-35616-19 (BK)	J-38125-553	7114-4025	Yazaki 11	E	1

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	BK/BU	1271	III	-	Accelerator Pedal Position Low Reference 1	1	0.5	BK/BU	1271	VI	-
2	0.35	BK/YE	1161	III	-	Accelerator Pedal Position Signal 1	2	0.5	YE/WH	1161	VI	-
3	0.35	BK/WH	1164	III	-	Accelerator Pedal Position 5V Reference 1	3	0.5	WH/RD	1164	VI	-
4	0.35	BK/VT	1272	III	-	Accelerator Pedal Position Low Reference 2	4	0.5	BK/VT	1272	VI	-
5	0.35	BK/GN	1162	III	-	Accelerator Pedal Position Signal 2	5	0.5	GN/WH	1162	VI	-
6	0.35	BK/RD	1274	III	-	Accelerator Pedal Position 5V Reference 2	6	0.5	BN/RD	1274	VI	-
7	0.35	BU/VT	1589	IV	-	Primary Fuel Level Sensor Signal	7	0.5	BU/VT	1589	VII	-
8	0.35	BK/GN	6281	IV	-	Fuel Level Sensor Low Reference	8	0.5 0.5	BK/GN BK/WH	6281 2151	VII VII	LF4 KL9
9	0.35	BU/WH	1937	IV	-	Secondary Fuel Level Sensor Signal	9	0.5	BU/WH	1937	VII	-
10	0.35	WH	121	IV	-	Engine Speed Signal	10	0.5	WH	121	VII	-
11	-	-	-	-	-	Not Occupied	11	-	-	-	-	-
12	0.35 0.5	VT BU/BK	7485 7493	IV IV	F46 LF4	Oil Temperature Sensor Signal High Speed GMLAN Serial Data (+)3	12	0.5 0.5	VT BU/BK	7485 7493	VII VII	F46 G96+LF4
13	0.35 0.5	VT/RD WH	7484 7494	IV IV	F46 LF4	Oil Temperature Sensor 5V Reference High Speed GMLAN Serial Data (-)3	13	0.5 0.5	VT/RD WH	7484 7494	VII VII	F46 G96+LF4
14	0.35	GY	4109	IV	-	Driver Mode Switch 5V Reference	14	0.5	GY	4109	VII	-
15	0.35	WH/BU	5986	IV	-	Serial Data Communication Enable	15	0.5	WH/BU	5986	VII	-
16 - 17	-	-	-	-	-	Not Occupied	16 - 17	-	-	-	-	-
18	0.5	RD/WH	140	IV	MG9	Battery Positive Voltage	18	0.5	RD/WH	140	VII	MG9
19	0.35	WH/BK	2366	IV	-	Cooling Fan Control Relay Speed Signal	19	0.5	WH/BK	2366	VII	-
20	0.35	VT/BU	6091	IV	-	Crankshaft Position Sensor Replicated Signal	20	0.5	VT/BU	6091	VII	-
21	0.35	VT/YE	5985	IV	-	Accessory Wakeup Serial Data	21	0.5	VT/YE	5985	VII	-
22	-	-	-	-	-	Not Occupied	22	-	-	-	-	-
23	0.35	BU/WH	890	IV	-	Fuel Tank Pressure Sensor Signal	23	0.5	BU/WH	890	VII	-
24	0.35	YE/RD	2709	IV	-	Fuel Tank Pressure Sensor 5V Reference	24	0.5	YE/RD	2709	VII	-
25	0.35	WH/RD	5381	IV	-	Brake Position Sensor 5V Reference	25	0.5	WH/RD	5381	VII	-
26	0.35	BK/YE	5382	IV	-	Brake Position Sensor Low Reference	26	0.5	BK/YE	5382	VII	-
27	0.35	WH/GN	5380	IV	-	Brake Position Sensor Signal	27	0.5	WH/GN	5380	VII	-
28	0.35 0.35	BN/RD GN/VT	7445 4621	IV IV	G96+LF4 -KL9	Fuel Line Pressure Sensor 5V Reference Local Interconnect Network Serial Data Bus 21	28	0.5 0.5	BN/RD GN/VT	7445 4621	VII VII	G96+LF4 -KL9
29	0.35	BN/WH	419	IV	-	Check Engine Indicator Control	29	0.5	BN/WH	419	VII	-
30	0.35	WH/BU	6311	IV	-	Cruise/ETC/TCC Brake Signal	30	0.5	WH/BU	6311	VII	-
31	0.35	GY/RD	6109	IV	-	Clutch Apply Sensor 5V Reference	31	0.5	GY/RD	6109	VII	-
32	0.5 0.35	GN/YE BK/GY	4623 6110	IV IV	KL9+M5N M3L	Local Interconnect Network Serial Data Bus 23 Clutch Apply Sensor Low Reference	32	0.5 0.5	GN/YE BK/GY	4623 6110	VII VII	KL9+M5N M3L
33	0.35	YE	6111	IV	-	Clutch Apply Sensor Signal	33	0.5	YE	6111	VII	-
34	0.35	GN/GY	465	II	-	Fuel Pump Primary Relay Control	34	0.5	GN/GY	465	VIII	-
35	0.35	WH/VT	4108	II	-	Driver Mode Switch Signal	35	0.5	WH/VT	4108	VIII	-
36	0.5	BU/YE	6105	II	-	High Speed GMLAN Serial Data (+) 2 High Speed GMLAN Serial Data (+) 2	36	0.5 0.5	BU/YE BU/YE	6105 6105	VIII VIII	- -
37	0.5	WH	6106	II	-	High Speed GMLAN Serial Data (-) 2 High Speed GMLAN Serial Data (-) 2	37	0.5 0.5	WH WH	6106 6106	VIII VIII	- -
38	0.5	WH	1310	II	-	EVAP Canister Vent Solenoid Control	38	0.5	WH	1310	VIII	-
39	0.35 0.5	BK/YE BN/BU	7447 4065	II II	G96+LF4 LTG+F46	Fuel Line Pressure Sensor Low Reference Powertrain Mount Solenoid Control 1	39	0.5 0.5	BK/YE BN/BU	7447 4065	VIII VIII	G96+LF4 LTG+F46
40	-	-	-	-	-	Not Occupied	40	-	-	-	-	-
41	0.5	BN/YE	4066	II	-	Powertrain Mount Solenoid Control 2	41	0.5	BN/YE	4066	VIII	-
42	0.35	BU/YE	6105	II	-	High Speed GMLAN Serial Data (+) 2	42	-	-	-	-	-
43	0.35	WH	6106	II	-	High Speed GMLAN Serial Data (-) 2	43	-	-	-	-	-
44	0.5	BU	2500	II	-	High Speed GMLAN Serial Data (+) 1	44	0.5	BU	2500	VIII	-
45	0.5	WH	2501	II	-	High Speed GMLAN Serial Data (-) 1	45	0.5	WH	2501	VIII	-
46	1 0.35	YE/WH BU/WH	7483 7446	I II	F46 G96+LF4	Clutch Coil Control Fuel Line Pressure Sensor Signal	46	1 0.5	YE/WH BU/WH	7483 7446	V VIII	F46 G96+LF4
47	1	YE/BK	7482	I	F46	Clutch Coil Low Reference	47	1	YE/BK	7482	V	F46
48	1	RD/BN	440	I	-	Battery Positive Voltage	48	0.5	RD/BN	440	VIII	-
49	0.5	BU/BN	7573	II	-	Electric Variable Displacement Supply	49	0.5	BU/BN	7573	VIII	-
50	0.5	BU/YE	7574	II	-	Electric Variable Displacement Control	50	0.5	BU/YE	7574	VIII	-
51	0.35	YE/VT	6030	II	-	Brake Vacuum Sensor Signal	51	0.5	YE/VT	6030	VIII	-
52	0.35	BK/YE	6032	II	-	Brake Vacuum Sensor Low Reference	52	0.5	BK/WH	2151	VIII	-
53	0.35	YE/RD	6031	II	-	Brake Vacuum Sensor 5V Reference	53	0.5	YE/RD	6031	VIII	-
54	0.5	YE/BU	5126	II	KL9/LF4	After Boil Heater Pump Control	54	0.5	YE/BU	5126	VIII	-
