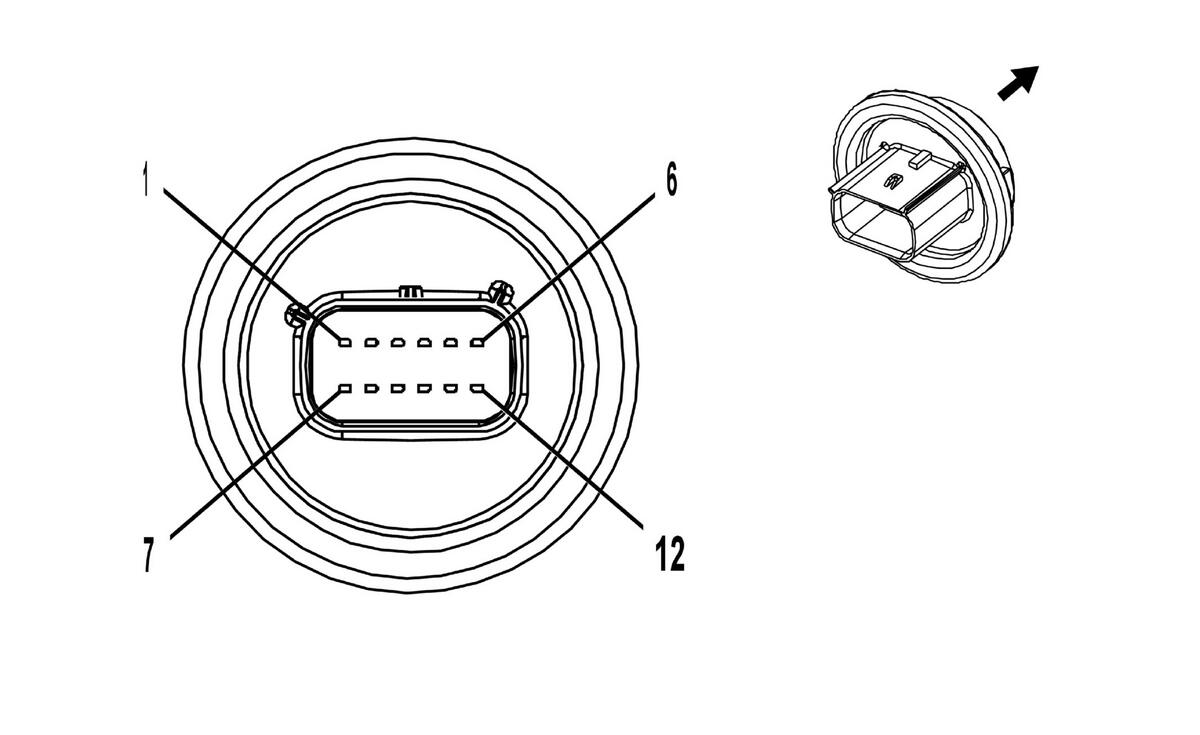

X120 Forward Lamp Harness to Right Headlamp Harness (TR6)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.


Connector Part Information Harness Type: Forward Lamp OEM Connector: 33472-1264 Service Connector: 19301398 Description: 12-Way F 150 MX Series, Sealed (D-GY)	Connector Part Information Harness Type: Right Headlamp OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 12-Way M

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300635	J-35616-2A (GY)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	Not Required	Not Available	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BK	650	I	TR6-T4F	Ground	1	0.5	BK	650	II	TR6-T4F
2	0.5	WH	311	I	TR6-T4F	Right Headlamp High Beam Control	2	0.5	WH	311	II	TR6-T4F
3	0.75	BK	650	I	TR6-T4F	Ground	3	0.75	BK	650	II	TR6-T4F
4	0.75	YE	312	I	TR6-T4F	Right Headlamp Low Beam Control	4	0.75	YE	312	II	TR6-T4F
5	0.5	BK	650	I	TR6-T4F	Ground	5	0.5	BK	650	II	TR6-T4F
6	0.5	GN/VT	1315	I	TR6-T4F	Right Front Turn Signal Lamp Control	6	0.5	GN/VT	1315	II	TR6-T4F
7	0.5	GY/BN	309	I	TR6-T4F-TUJ	Right Park Lamp Control	7	0.5	OG	309	II	TR6-T4F-TUJ
8	0.35	BK	650	I	-	Ground	8	0.35	BN	650	II	-
9	0.35	VT/GY	1039	I	-	Run/Crank Ignition 1 Voltage	9	0.35	WH/OG	1039	II	-
10	0.35	BN/YE	189	I	-	Headlamp Leveling Motor Control	10	0.35	D-BU	189	II	-
11 - 12	-	-	-	-	-	Not Occupied	11 - 12	-	-	-	-	-
