Front Seat Easy Entry Handle Replacement (with W2E)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

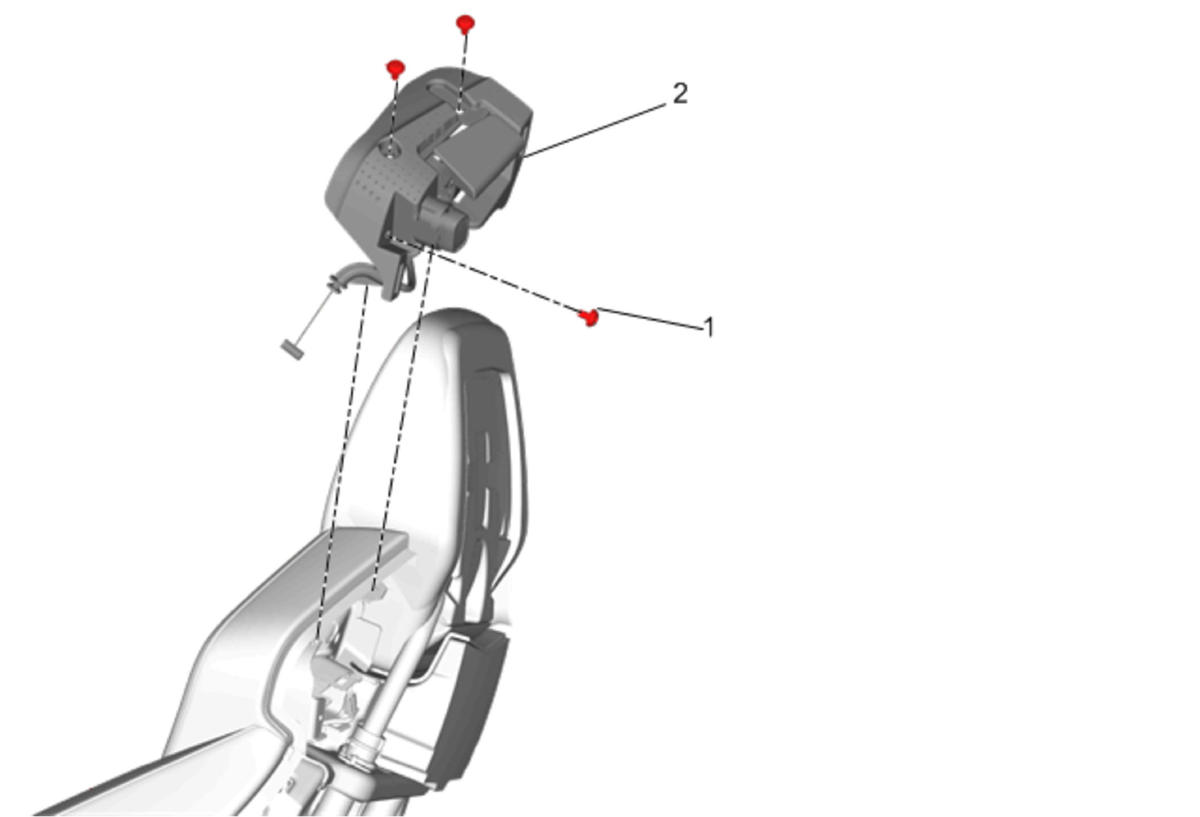

| Callout | Component Name |
|---|---|
| Preliminary Procedure Refer to Front Seat Back Opening Rear Bezel Replacement (with W2E) |
|
| 1 | Front Seat Easy Entry Handle Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 7.5 N.m (66 lb in) |
| 2 | Front Seat Easy Entry Handle Disconnect the latch release cable. |
