Front Seat Cushion Front Finish Cover Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

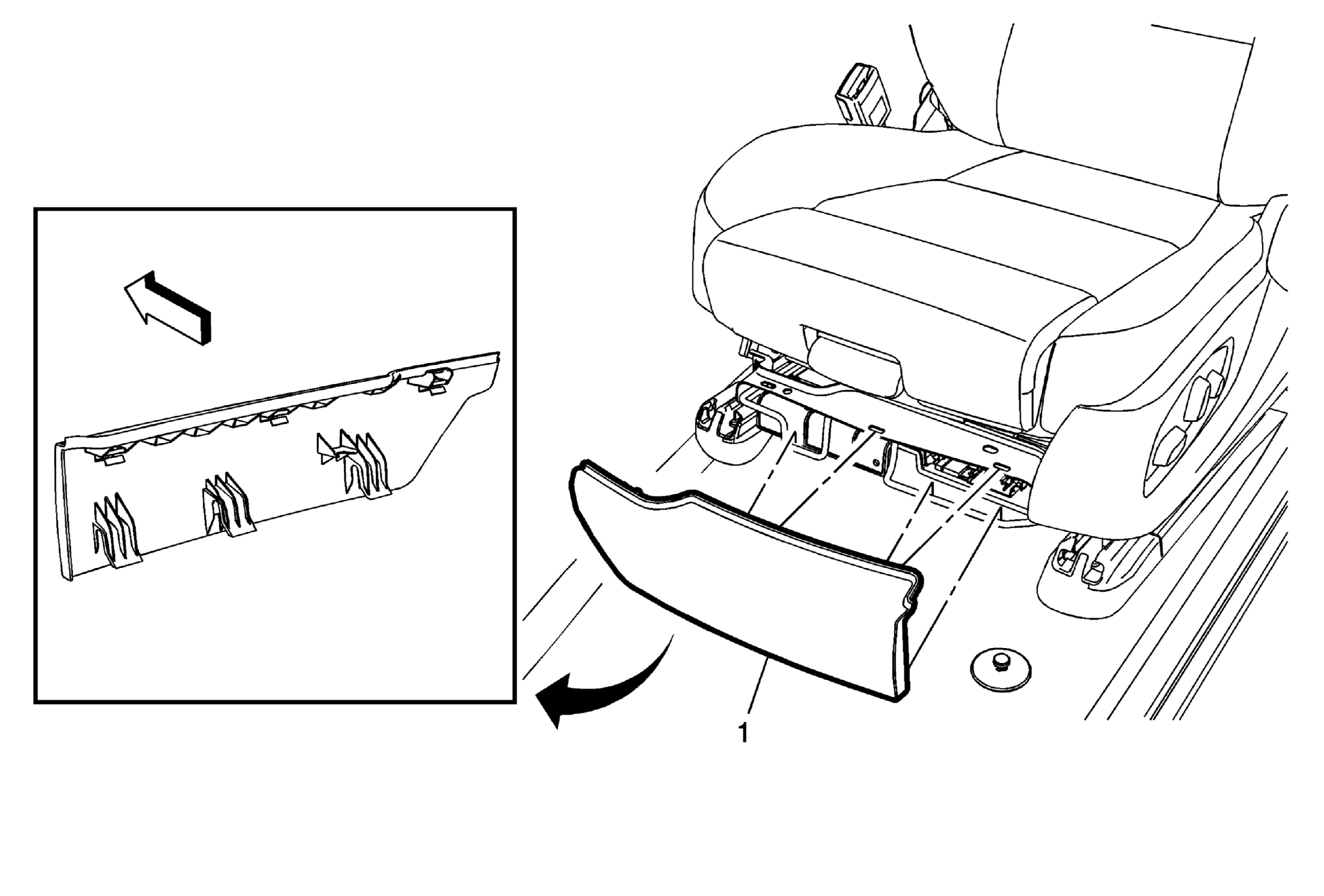

| Callout |
Component Name |
| 1 |
Front Seat Cushion Front Finish Cover Procedure
- Pull the inboard side of the cover forward first to disengage the retainer clips.
- Slide the cover from the seat module bracket.
|
