Driver or Passenger Seat Inner Adjuster Finish Cover Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

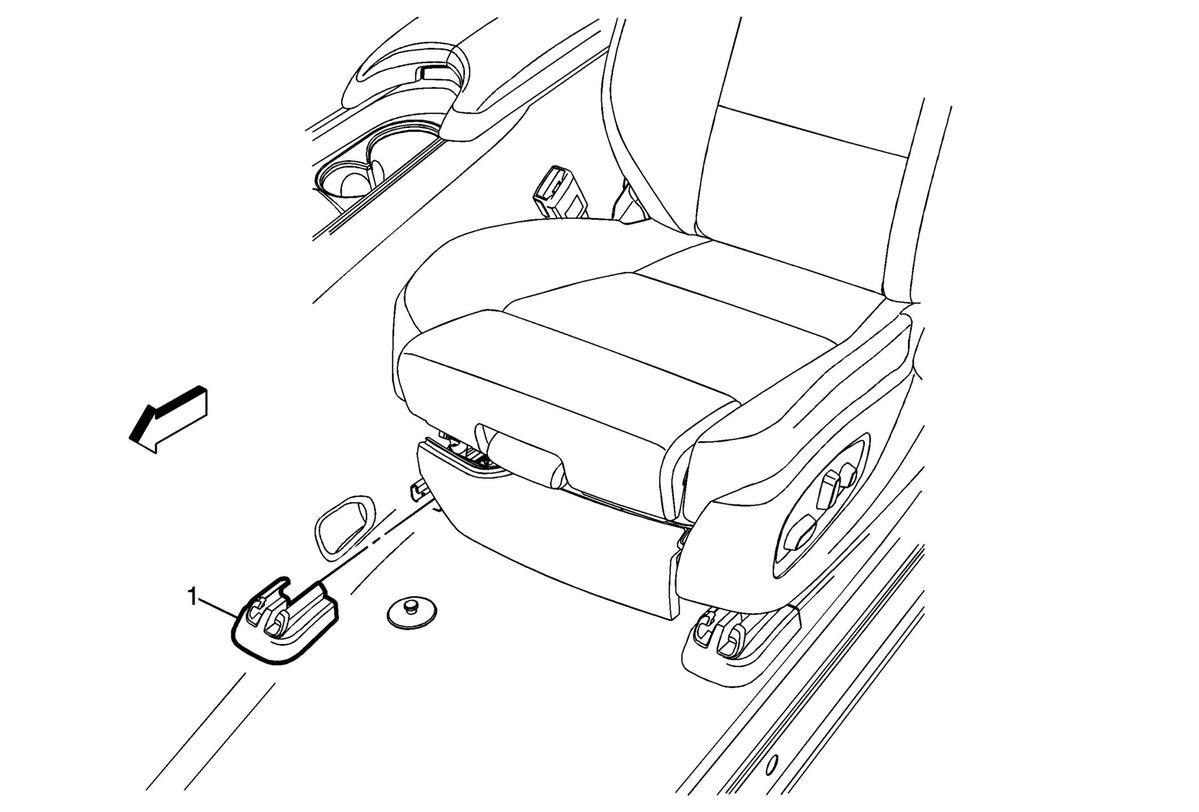

Fig 1: Driver or Passenger Seat Inner Adjuster Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver or Passenger Seat Inner Adjuster Front Finish Cover CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Adjust the seat to the full rearward position to gain access to the finish cover. Firmly grasp both sides of the finish cover pulling the sides outward to disengage the top of the cover off of the track. Remove the finish cover by sliding the cover forward and then pull down on the finish cover to disengage it from the track.

Callout

Component Name

Driver or Passenger Seat Inner Adjuster Front Finish Cover

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

Adjust the seat to the full rearward position to gain access to the finish cover.
Firmly grasp both sides of the finish cover pulling the sides outward to disengage the top of the cover off of the track.
Remove the finish cover by sliding the cover forward and then pull down on the finish cover to disengage it from the track.
