Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

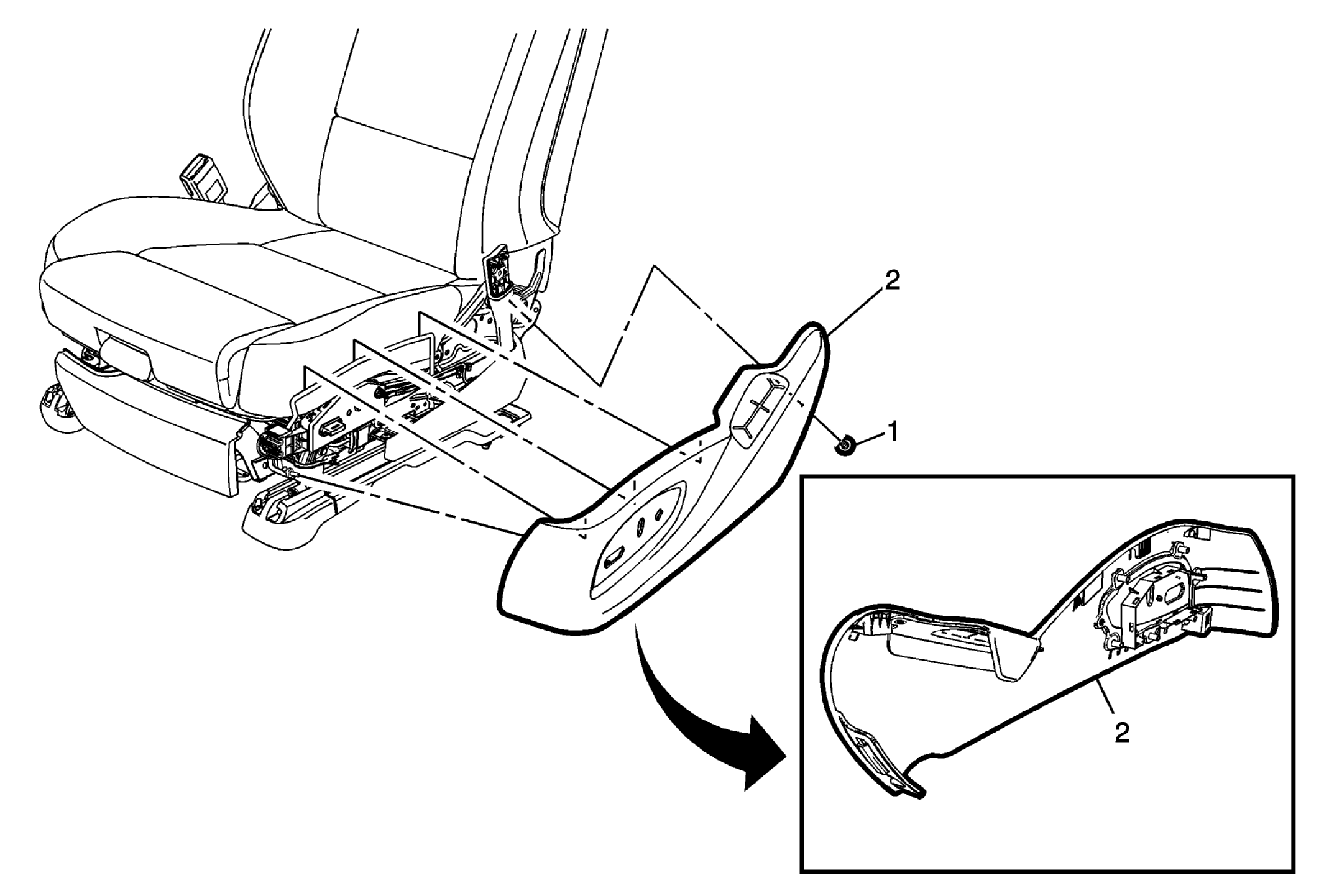

Fig 1: Driver or Passenger Seat Cushion Outer Finish Panel (Sedan)
GM2809828Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the seat belt from the pretensioner. Refer to Front Seat Belt Retractor Replacement (Sedan) .
  2. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  3. Remove the front seat recliner knob. Refer to Front Seat Recliner Knob Replacement .
  4. Remove the driver or passenger seat lumbar support actuator knob. Refer to Driver or Passenger Seat Lumbar Support Actuator Knob Replacement .
  5. Remove the front seat adjuster knob. Refer to Front Seat Adjuster Knob Replacement .
1 Driver or Passenger Seat Cushion Outer Finish Panel Retainers (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Driver or Passenger Seat Cushion Outer Finish Panel

Procedure

  1. Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener.
  2. Remove the outer finish panel by pulling upward near the retainer clip locations.
  3. Disconnect the electrical connectors.
  4. If replacing the finish panel, transfer components as necessary.
