Instrument Panel Insulator Hole Cover Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

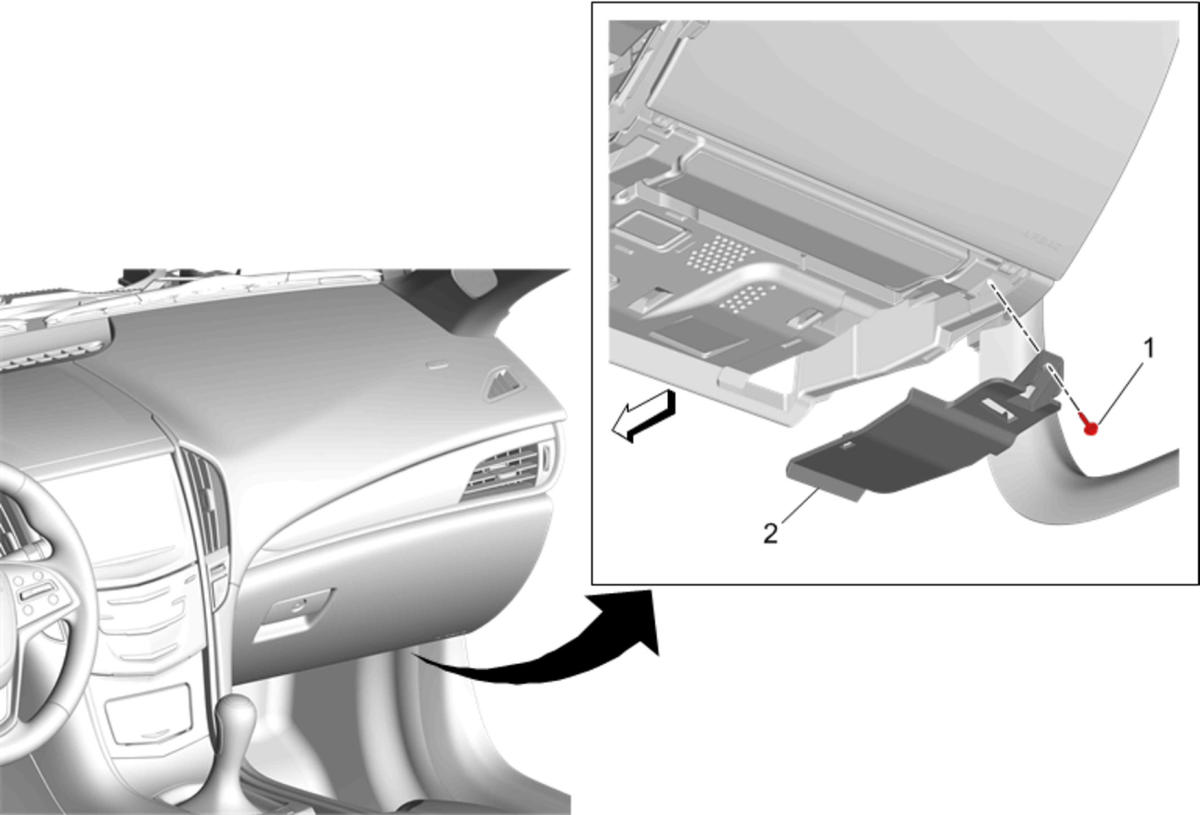

Fig 1: Instrument Panel Insulator Hole Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Insulator Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Insulator Hole Cover Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Instrument Panel Insulator Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Insulator Hole Cover

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
