Instrument Panel Instrument Cluster Hood Replacement (With UV6)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

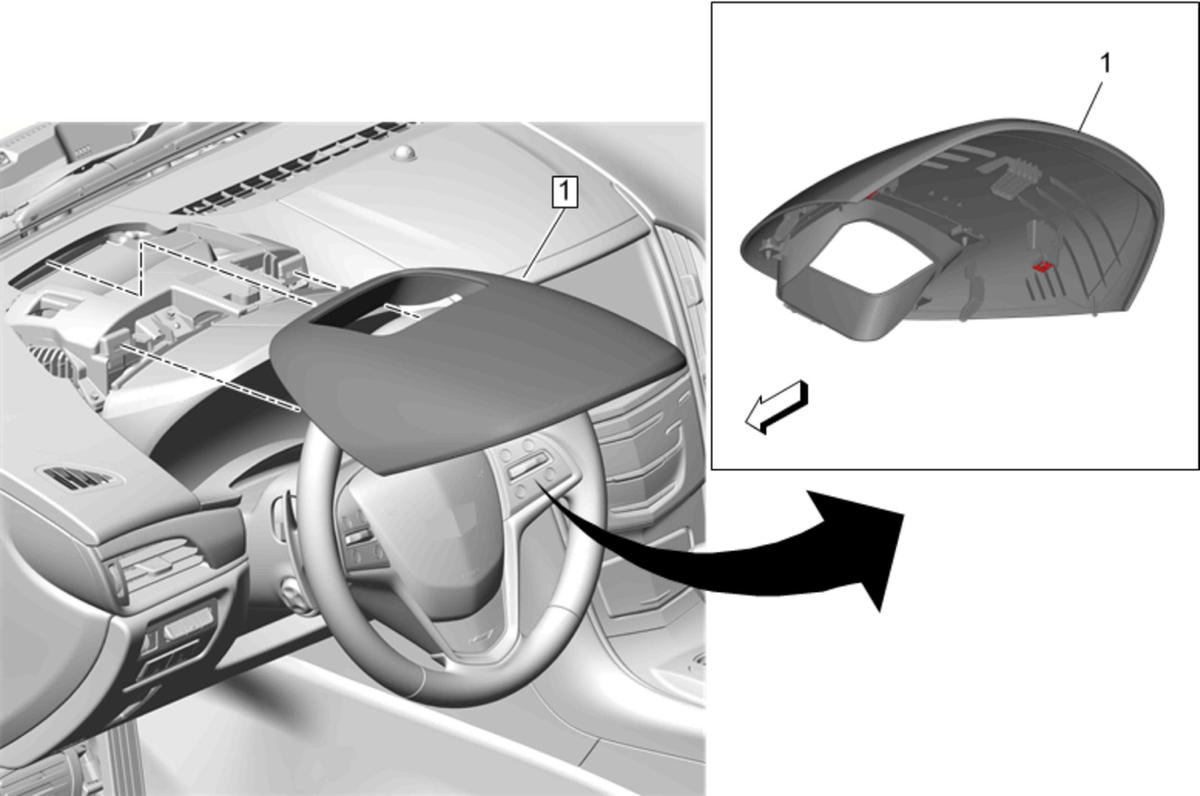

Fig 1: Instrument Panel Instrument Cluster Hood (With UV6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Instrument Cluster Hood Procedure Grasp the hood firmly and pull rearward to release the hood from the cluster trim plate.
