Instrument Panel Instrument Cluster Hood Replacement (With UEU)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

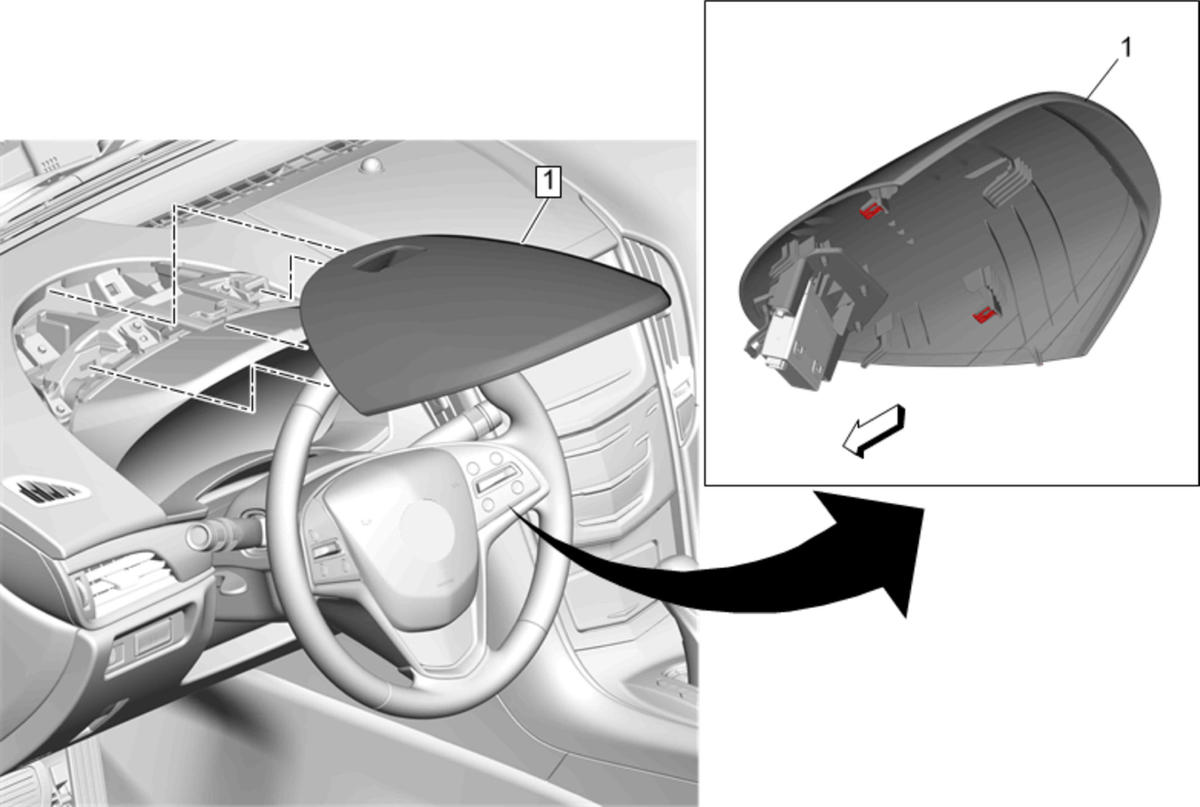

| Callout |
Component Name |
| 1 |
Instrument Panel Instrument Cluster Hood Procedure
- Grasp the hood firmly and pull rearward to release the hood from the cluster trim plate.
- Disconnect the electrical connector.
- Transfer components as necessary.
|
