Instrument Panel Compartment Shelf Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

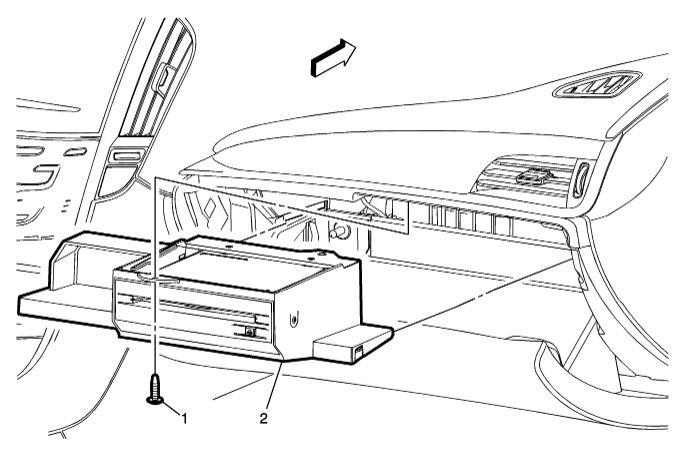

Fig 1: Instrument Panel Compartment Shelf

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Compartment Shelf Fastener CAUTION: Refer to Fastener Caution .
2	Instrument Panel Compartment Shelf Procedures Disconnect electrical connections. Transfer all necessary components.

Callout

Component Name

Instrument Panel Compartment Shelf Fastener

CAUTION:

Refer to Fastener Caution .

Instrument Panel Compartment Shelf

Procedures

Disconnect electrical connections.
Transfer all necessary components.
