Steering Wheel Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

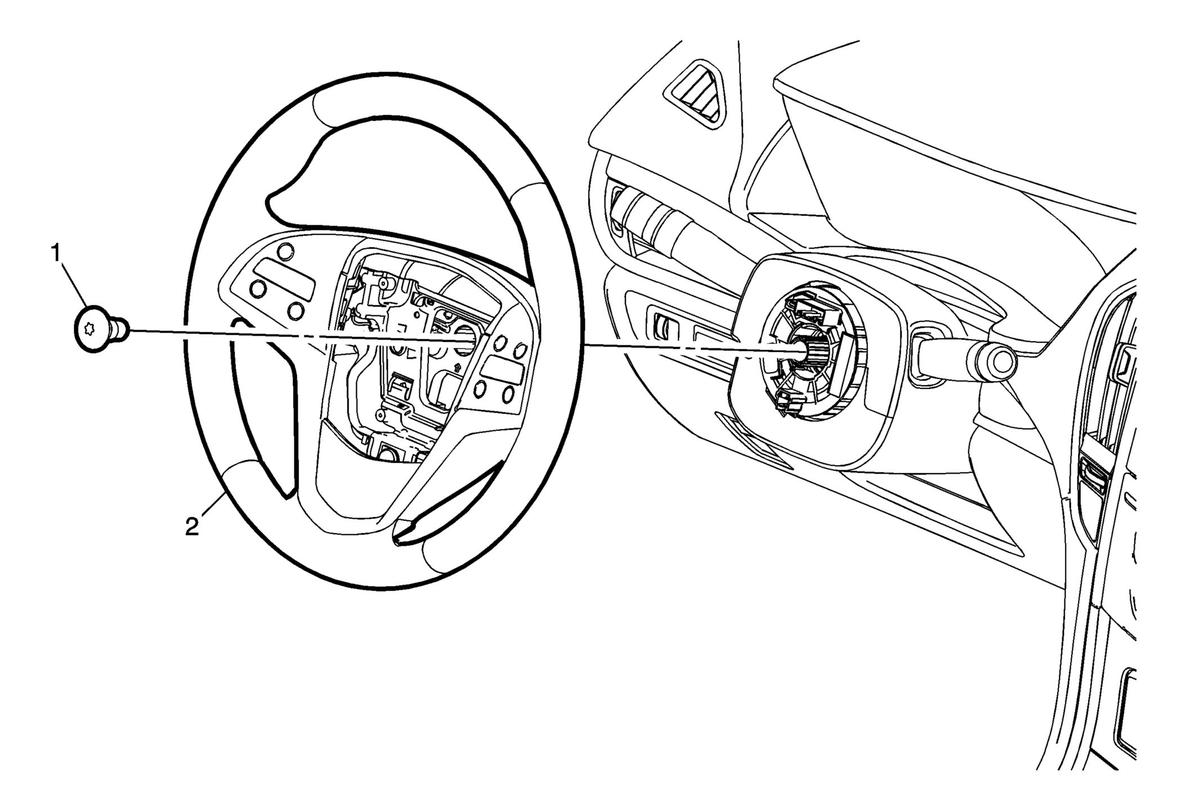

Fig 1: Steering Wheel & Bolt
GM2809756Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

Preliminary Procedures

  1. SIR Disabling and Enabling
  2. Steering Wheel Airbag Replacement
1 Steering Wheel Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
  2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

Tighten
50 N.m (37 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel bolt until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Remove Steering Wheel Bolt
  5. Remove Steering Wheel
  6. Transfer components as necessary.
