Rear Compartment Rear Window Lower Trim Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

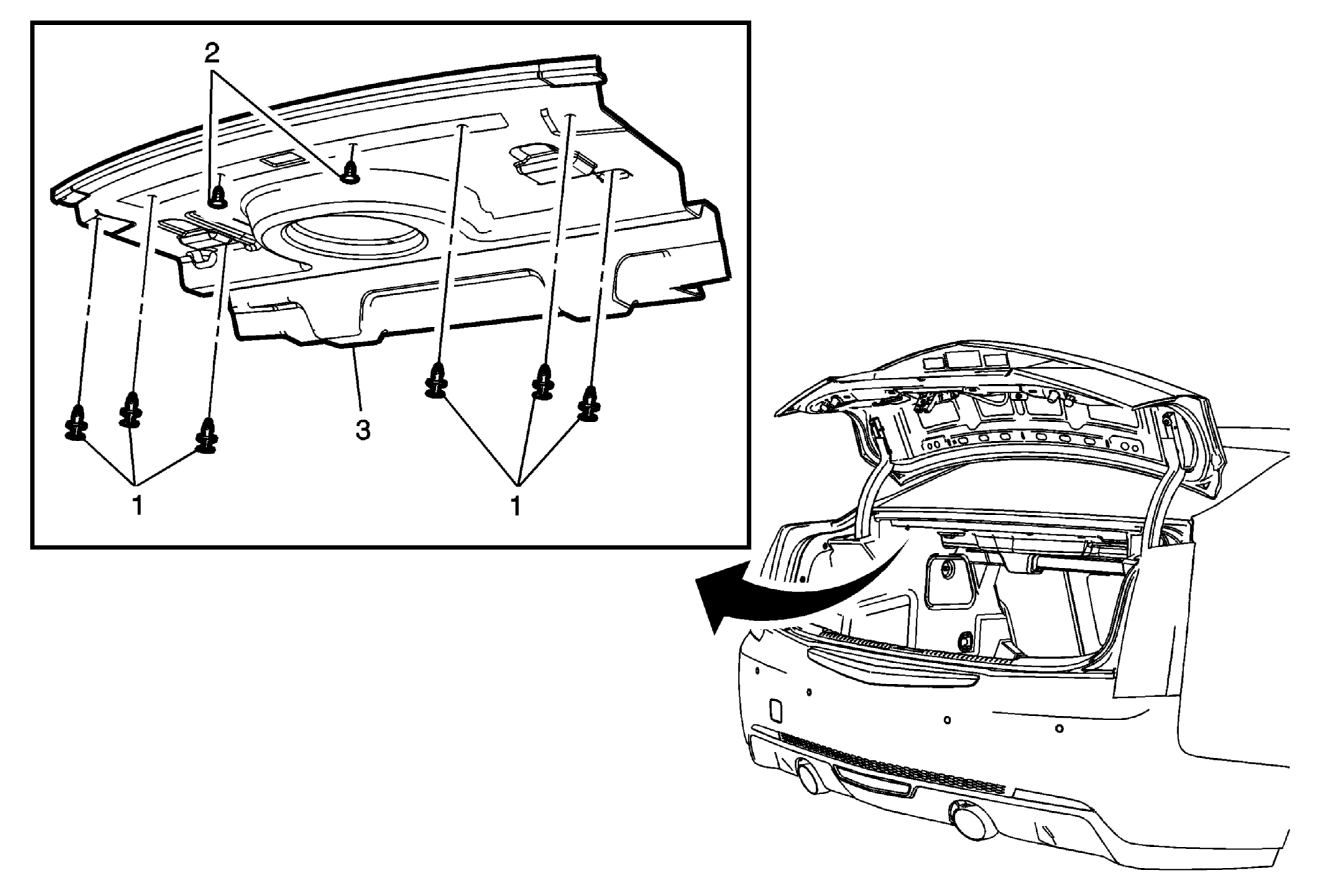

Fig 1: Rear Compartment Rear Window Lower Trim Assembly (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Rear Window Lower Trim Retainer (Qty: 6) Procedure Open the rear compartment lid to access retainers. Use a trim removal tool to aid in the removal of the retainers.
2	Rear Compartment Lid Hinge Cover Retainer (Qty: 2) Procedure Use a trim removal tool to aid in the removal of the retainers.
3	Rear Compartment Rear Window Lower Trim Assembly

Callout

Component Name

Rear Compartment Rear Window Lower Trim Retainer (Qty: 6)

Procedure

Open the rear compartment lid to access retainers.
Use a trim removal tool to aid in the removal of the retainers.

Rear Compartment Lid Hinge Cover Retainer (Qty: 2)
Procedure
Use a trim removal tool to aid in the removal of the retainers.

Rear Compartment Rear Window Lower Trim Assembly
